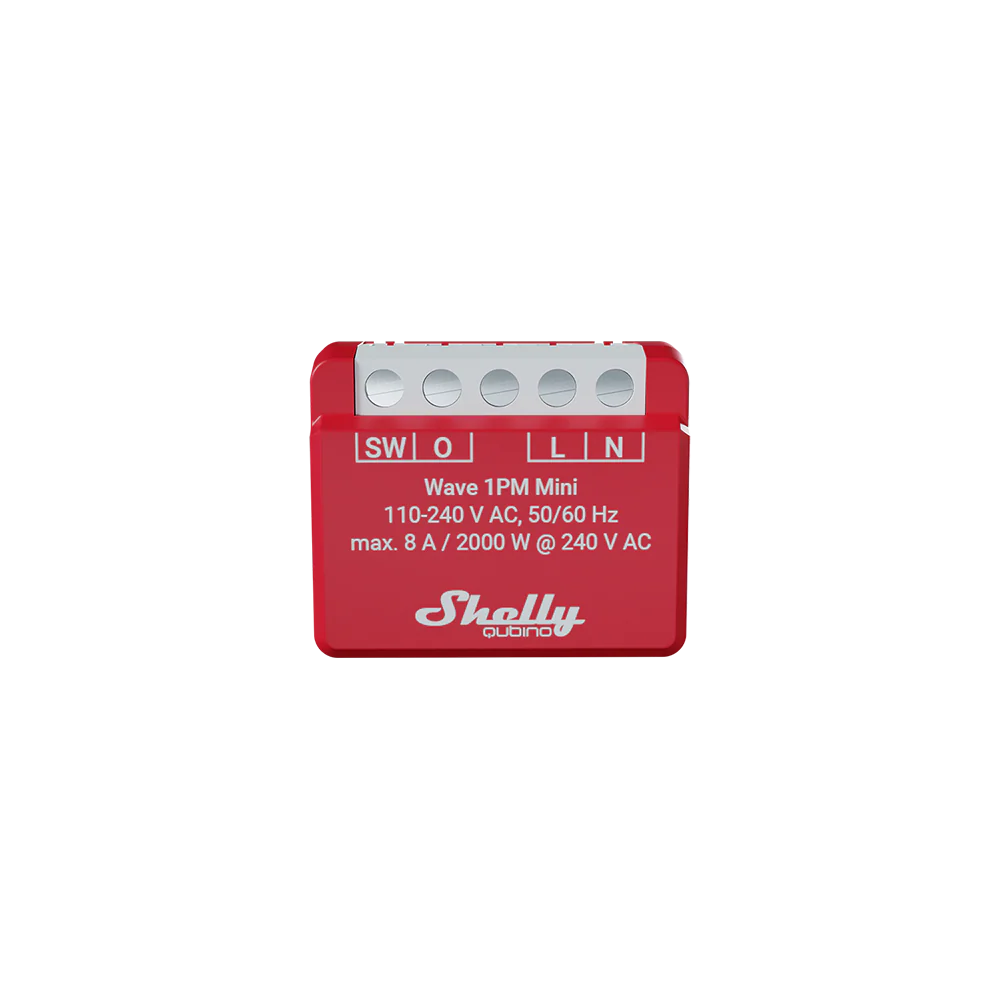

The Shelly Wave 1 Mini is the world's smallest Z-Wave smart switch with power metering. Remotely control your lights or a wide range of small electrical appliances and measure their power consumption, up to 8A 240V AC.

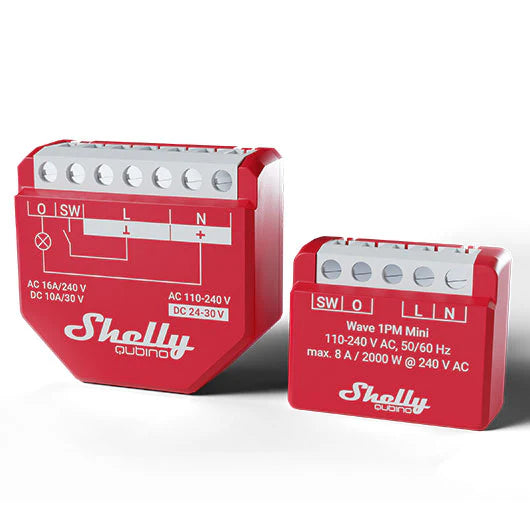

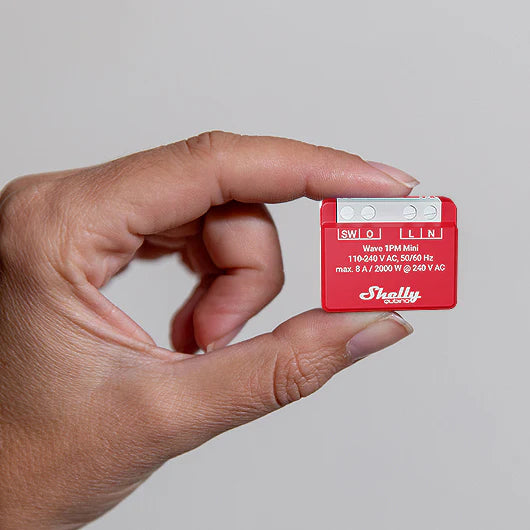

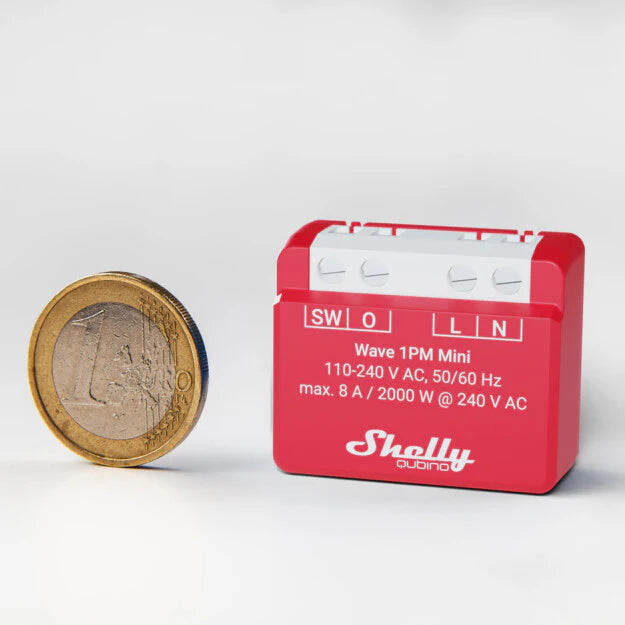

Designed with convenience in mind, this mini switch has similar capabilities (albeit lower current switching ability) of the Shelly Wave 1PM fit into a compact and space-saving form factor. With its size reduced by 35% compared to its predecessor, Wave 1 Mini is perfect for those tight spaces where traditional modules simply won't fit. Despite their small size, Wave Mini devices don't compromise on performance or functionality, just a lower switching current of 8A 240VAC.
Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control connected appliances with a popular home automation software such as Home Assistant.
Works with all certified Z-Wave Gateways
Shelly Wave devices work with over 4000 Z-Wave-certified devices and gateways. Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control connected appliances from anywhere using your smartphone or tablet.
Highlights
- Z-Wave operated - Include Wave 1PM Mini to your Z-Wave network and control it remotely. It‘s compatible with all certified Z-Wave gateways
- Smart switching - switch up to 8A 240VAC (single channel)
- Power Monitoring - Wave 1PM Mini provides precise power consumption monitoring
- Smart Schedules - Create personalized schedules aligned with your daily routine or synchronize with sunrise/sunset to manage your lighting (gateway required).
- Wide range of voltage support - Use a wide range of voltage levels
- Associations - Establish direct communication between devices in your Z-Wave local network and set actions with no gateway present!
- Smart scenes - Set custom scenes by combining Wave 1PM Mini with any other Z-Wave devices (gateway required)
Features
- Supports up to 8 A at 240 V AC
- Power metering
- Extremely low power consumption: < 0.3 W
- Z-Wave frequency band: 868.4 MHz (CEPT countries)
- Latest technology: Z-Wave 800 Series
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Supports over-the-air firmware updates

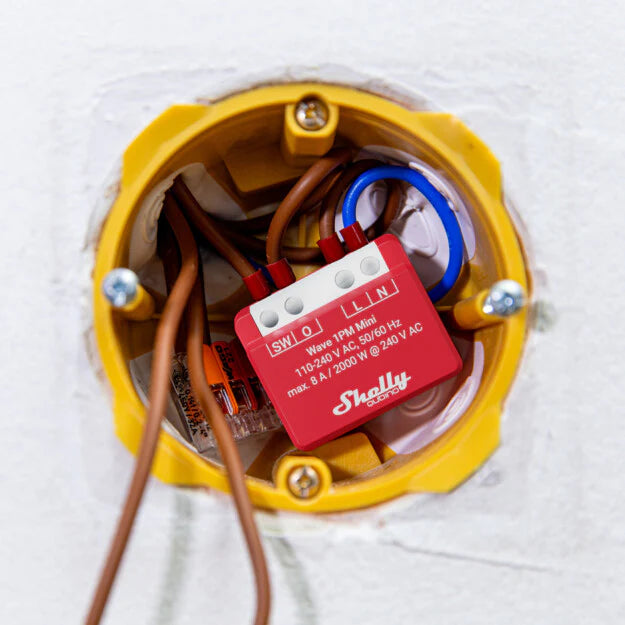

- Fast and simple installation in most electrical boxes and switches
- Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
- A Z-Wave™ gateway is not included. A gateway (smart hub) is required for the configuration of the device.
