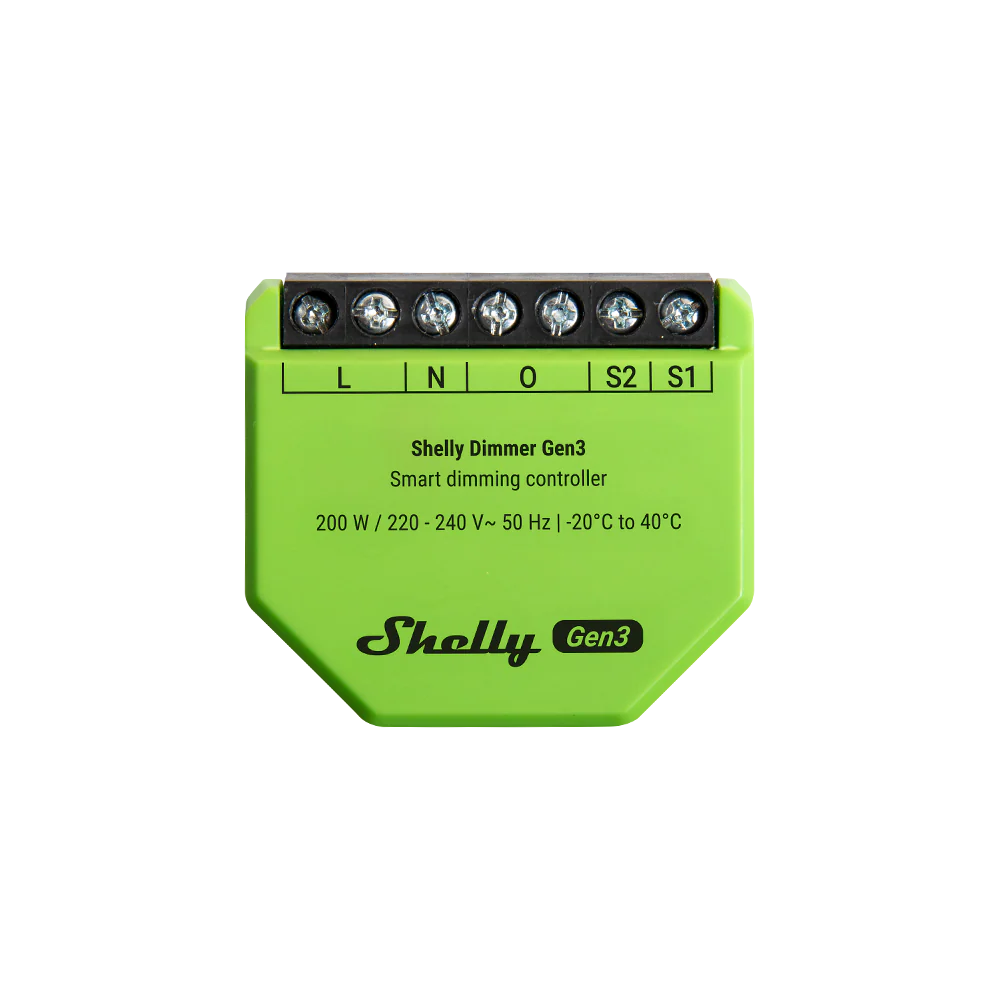

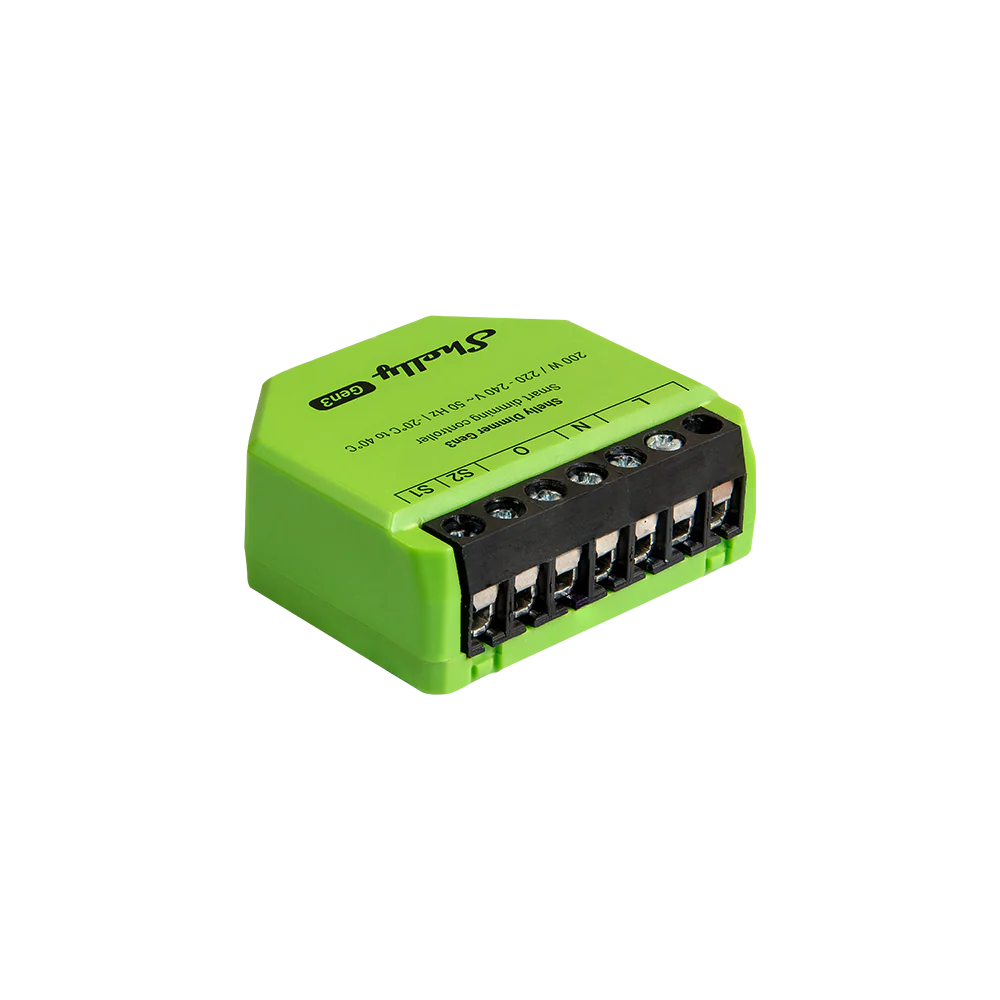

The Shelly Dimmer Gen3 is a smart dimming controller for seamless remote control of dimmable lights and drivers. It can be used with or without a neutral wire. Precise measurement and power monitoring is possible when used with neutral. A bypass is required when the device is used without neutral and the load is under 20W.
Shelly Dimmer Gen3, powered by our own Shelly chip, offers precise and reliable dimming control. It works with or without a neutral wire and allows for easy adjustment of brightness through the app or a simple button press. With features like smart scheduling and night mode, it helps you customise dimming for different times of day and activities. Take full control of your dimmable lighting and quickly enhance comfort and efficiency.
It can be accessed, controlled and monitored remotely from any place where the user has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet. The unit has an embedded web interface which can be used to monitor and control the device, as well as adjust its settings. The Device can be used as a trailing edge dimmer switch, with or without a neutral wire.
Features
- Wi-Fi operated Bluetooth inclusion, or use it as a Bluetooth gateway.
- No need for neutral: Can be used without a neutral wire. Bypass is required when the device is used without neutral and the load is under 20 W.
- Supported light types: Dimmable LED lamps: up to 150 W Incandescent bulbs: up to 200 W Halogen lamps: up to 200 W Iron-core transformer with low-voltage incandescent lamps: up to 200 VA Dimmable electronic transformers: up to 200 W
- Overload and temperature protection
- Equipped with a new processor & increased flash memory - ESP Shelly

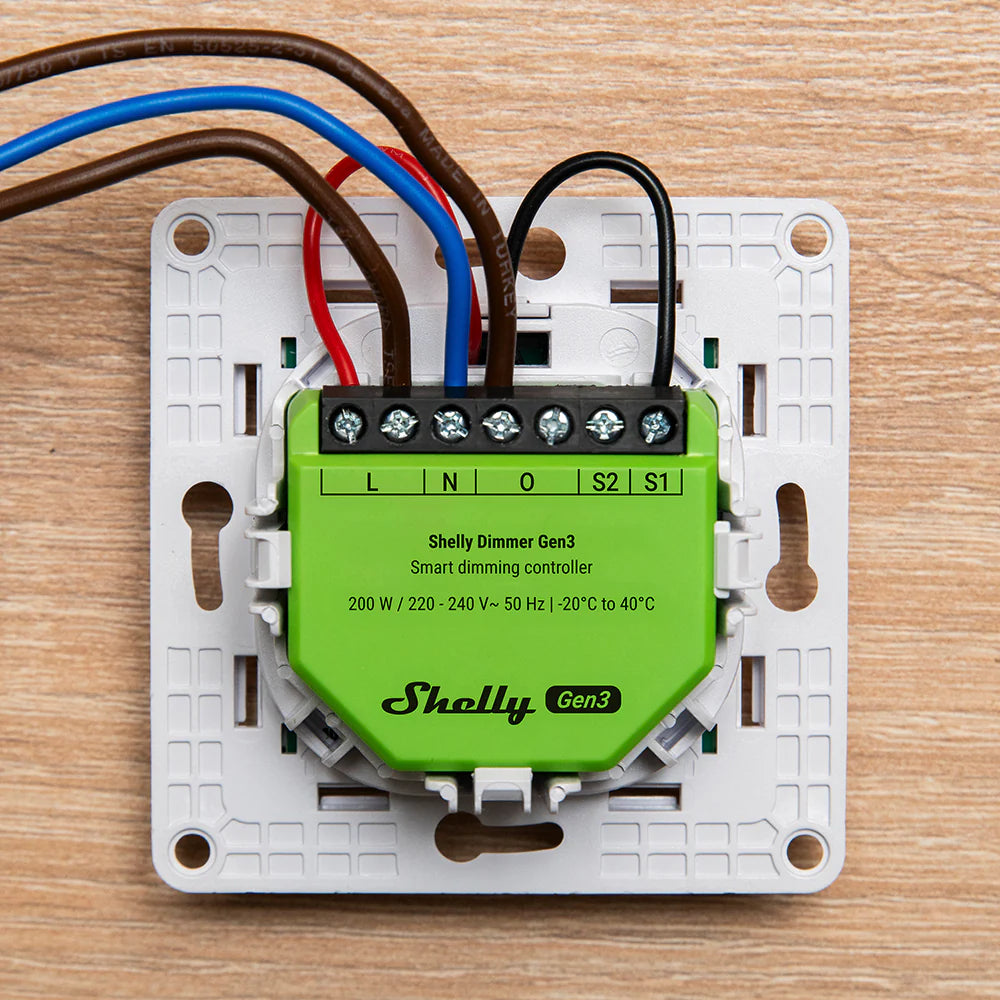

- Designed for installation in a limited space, such as wall mounts, electrical control panels, etc.
- Easy control through the Shelly app, as well as various protocols, platforms, and voice assistants.
