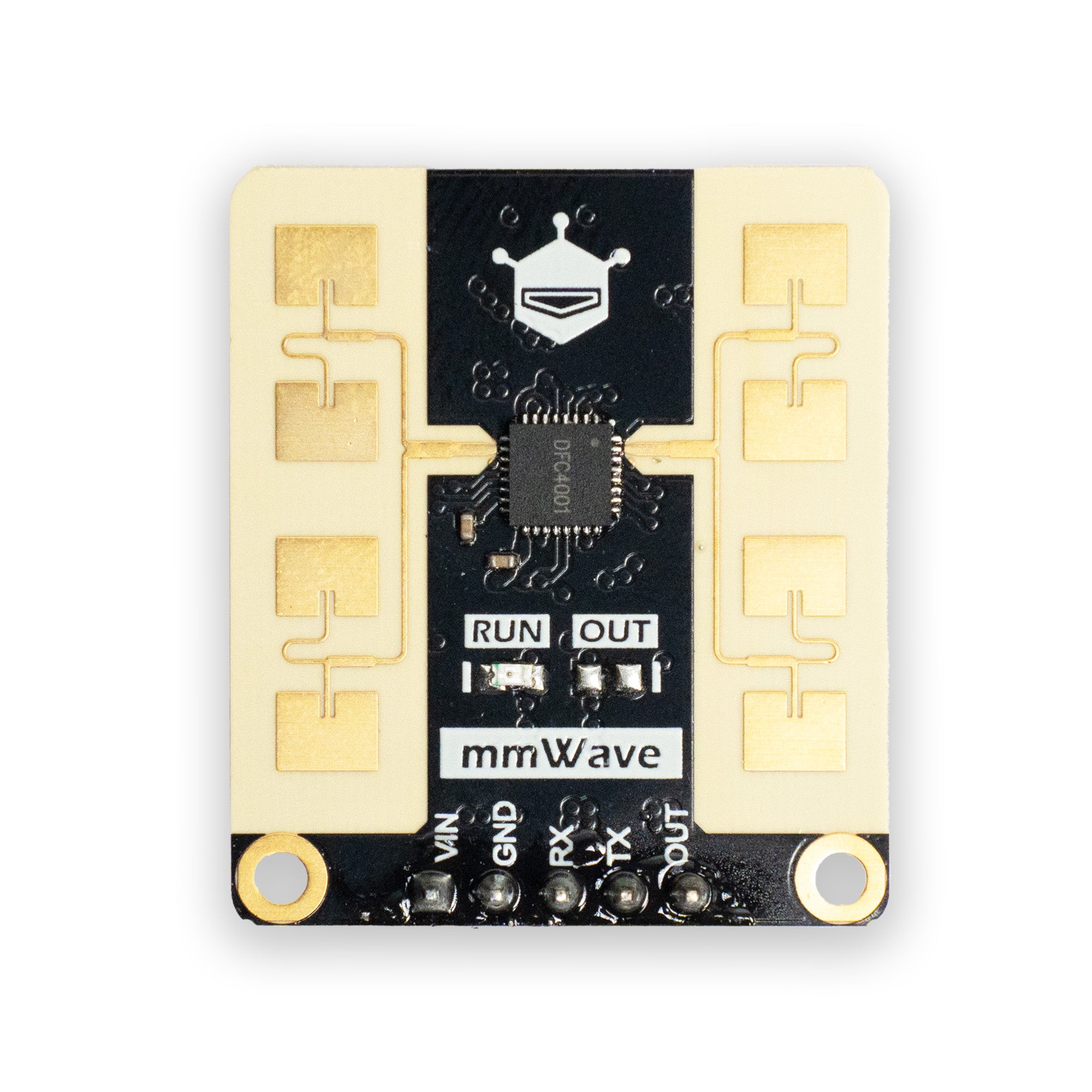

mmWave Radar C4001 (SEN0609) 24GHz Human Presence Detection Sensor (25 Meters)

The C4001 millimeter-wave presence sensor utilizes a wavelength signal of 24GHz. It has a detection range of 100° horizontally, with a presence detection range of 16 meters and a motion detection and distance measurement range of 25 meters. It is suitable for human presence detection, environmental monitoring, and real-time monitoring projects.

Human detection

Compared to other types of presence sensors such as infrared sensors and ultrasonic sensors, the C4001(25m) millimeter-wave presence sensor has the advantage of being able to detect both static and moving objects. It also has a relatively strong anti-interference ability, making it less susceptible to factors such as temperature changes, variations in ambient light, and environmental noise. Whether a person is sitting, sleeping, or in motion, the sensor can quickly and sensitively detect their presence.

FEATURES

• Human detection: Detection range up to 16 meters and motion detection range up to 25 meters.
• Distance detection: Range from 1.2 meters to 25 meters.
• Velocity detection: Range from 0.1 meters per second to 10 meters per second.
• Strong anti-interference capability, unaffected by snow, haze, temperature, humidity, dust, light, noise, etc.
• High and low-level output control through I/O ports.
• Input and output control via serial port.
• Small size, easy to integrate.

APPLICATIONS

• Human Detection
• Distance and Velocity Detection
• Environmental Monitoring
• Industrial Automation
• Real-time Monitoring and Tracking

SPECIFICATION

• Operating voltage: 3.3/5V
• Maximum detection range: 25m
• Beam angle: 100*40°
• Modulation mode: FMCW
• Operating frequency: 24GHz
• Operating temperature: -40~85℃
• Baud rate: 9600
• Connector: 5-pin header pre-soldered
• Size: 26*30mm
