Nabu Casa

Home Assistant Voice Preview Edition

Price
£52.00 GBP
£52.00 GBP
Shipping calculated at checkout.
Available In Stock
30 Days Return Policy

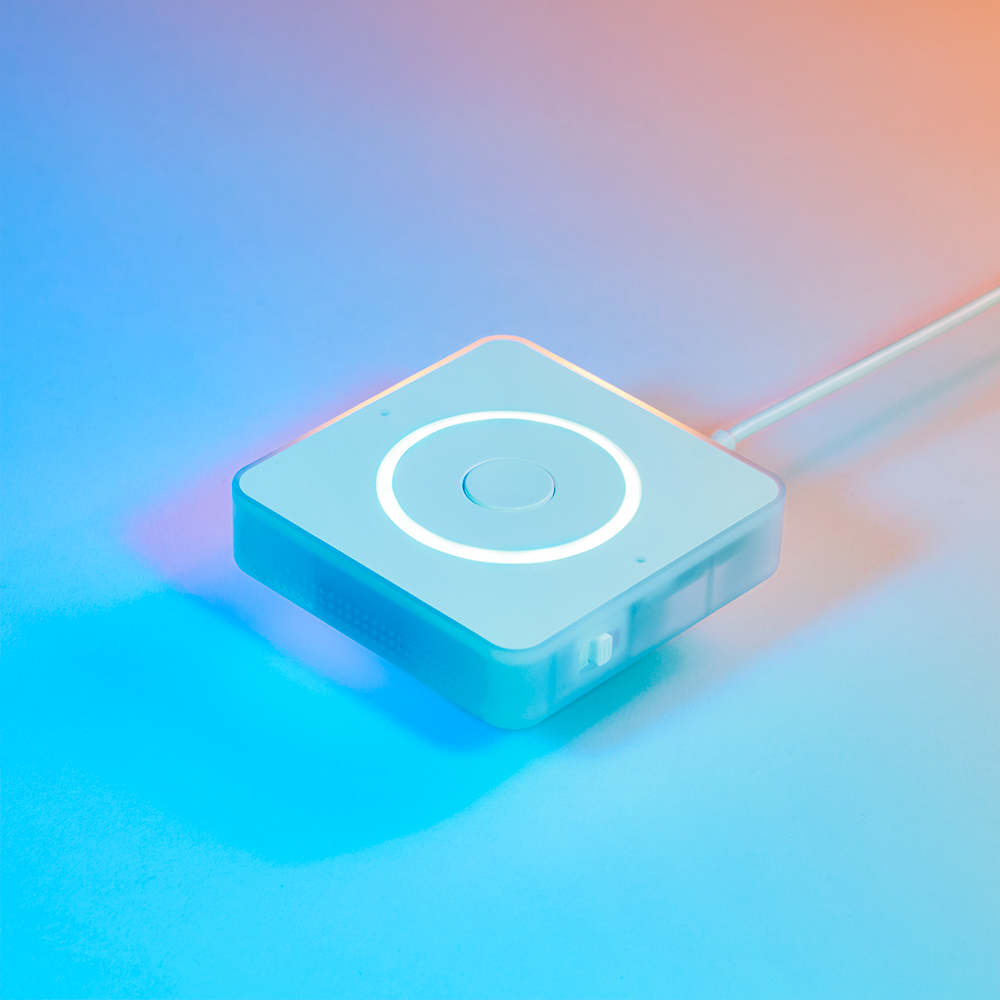

Home Assistant Voice Preview Edition is the open source, privacy-focused voice assistant built to seamlessly connect with Home Assistant, and preview the future of voice today. Its advanced audio processor and dual microphones allow it to hear your commands and control devices. Tactile controls, the injection-molded case and LED ring lend to its premium feel, allowing it to blend into the home.
Home Assistant Voice Preview Edition
  • Overview
  • Specifications
Integrates with Home Assistant - light Integrates with Home Assistant - dark WiFi

Hear Every Word, Loud and Clear

Dual far-field microphones paired with a powerful XMOS audio chip capture your voice accurately, even in noisy environments. And with a dedicated DAC over the 3.5mm stereo jack, you can enjoy high-fidelity, lossless audio streaming.

Intuitive Control at Your Fingertips

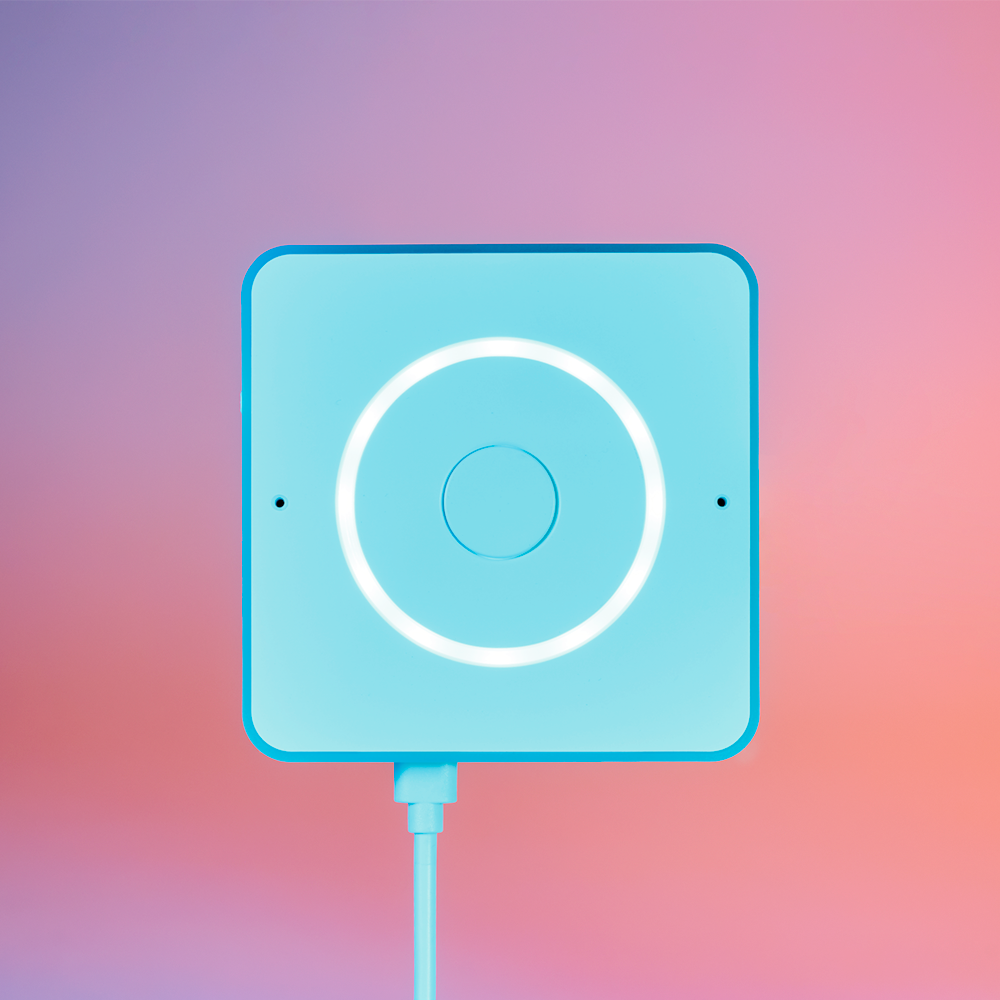

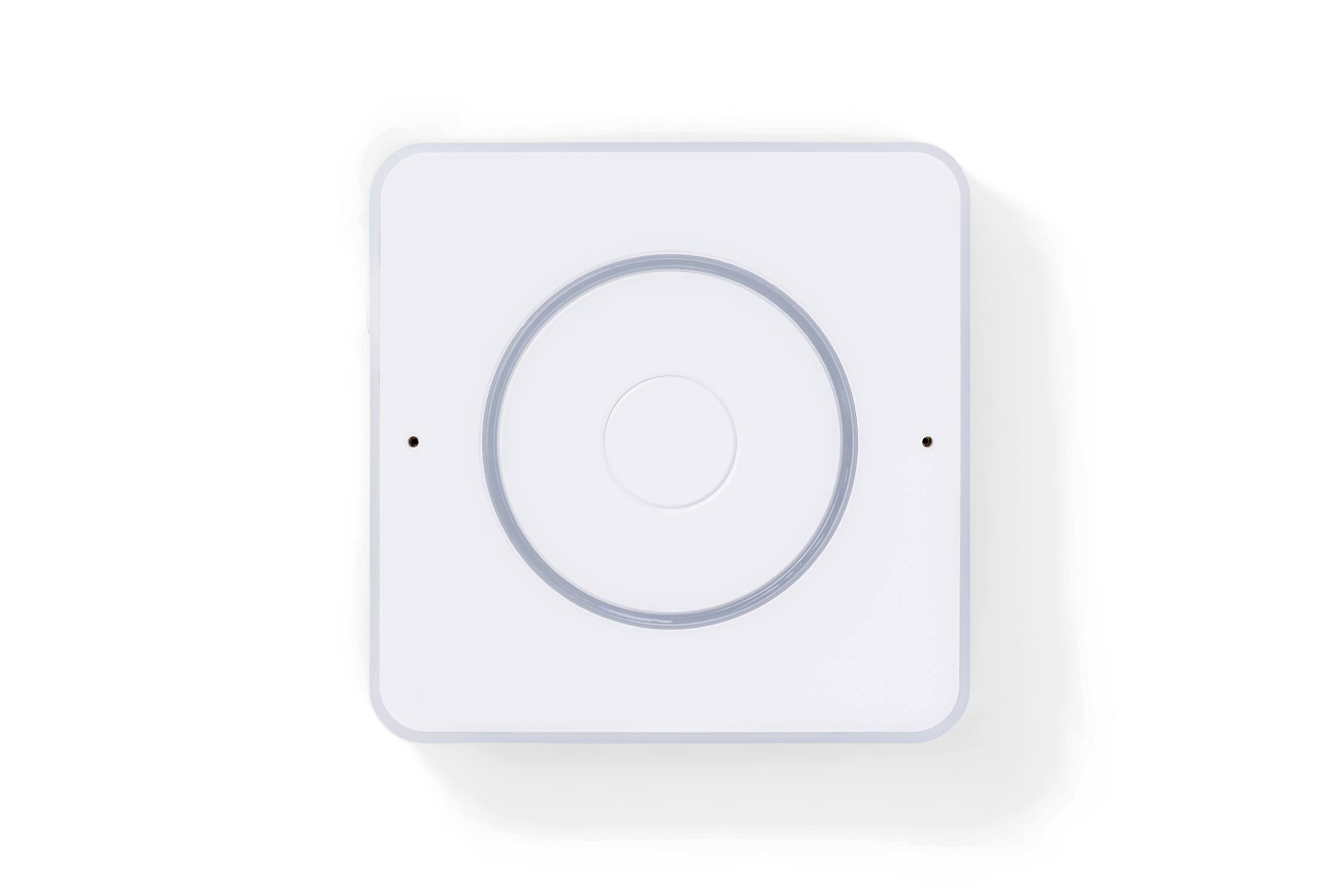

A tactile button and precision rotary volume dial give you satisfying control. The multicolor LED ring gives clear, visual feedback - showing when it's listening, adjusting volume, and more.

Privacy You Can See and Trust

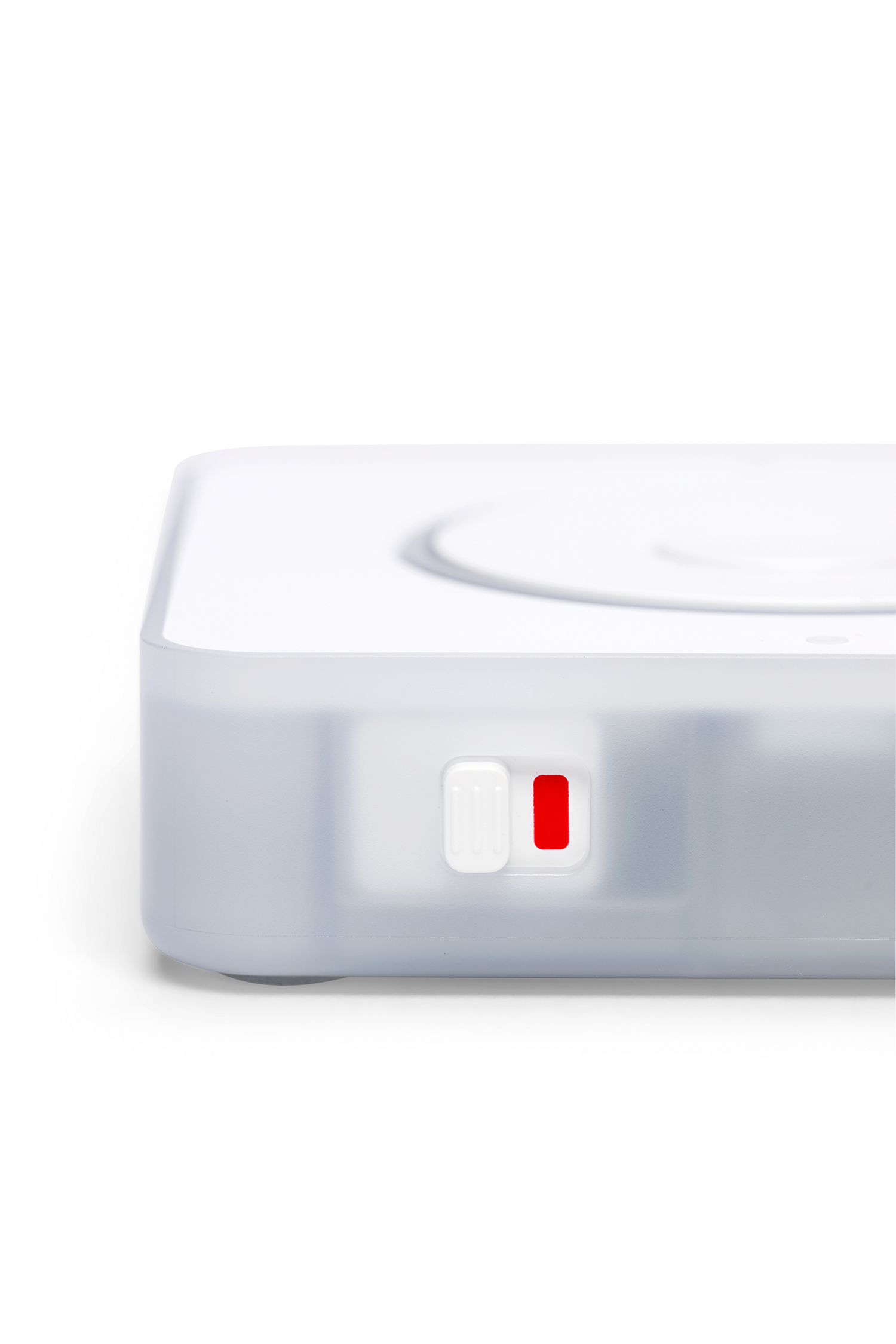

A hardware-based microphone cutoff ensures complete peace of mind - physically disconnecting power to the mics for guaranteed privacy.

Description

Description

Home Assistant Voice Preview Edition is the open source, privacy-focused voice assistant built to seamlessly connect with Home Assistant, and preview the future of voice today. Its advanced audio processor and dual microphones allow itto hear your commands and control devices. Tactile controls, the injection-molded case and LED ring lend to its premium feel, allowing it to blend into the home.

Features

Note: Voice Preview Edition requires Home Assistant to operate. Weaker Home Assistant hardware can lead to slow speech processing. If you have lower-power Home Assistant hardware, you should offload speech processing to Home Assistant Cloud.


  • Built for Home Assistant: The first voice hardware designed by the team driving the development of Home Assistant, and built from the ground up to work with Home Assistant.
  • Preview the future of voice today: Home Assistant is rapidly advancing their open source, privacy-focused voice assistant for the home. Preview Edition was built to help more people participate in development and allow anyone to preview the future of voice today.

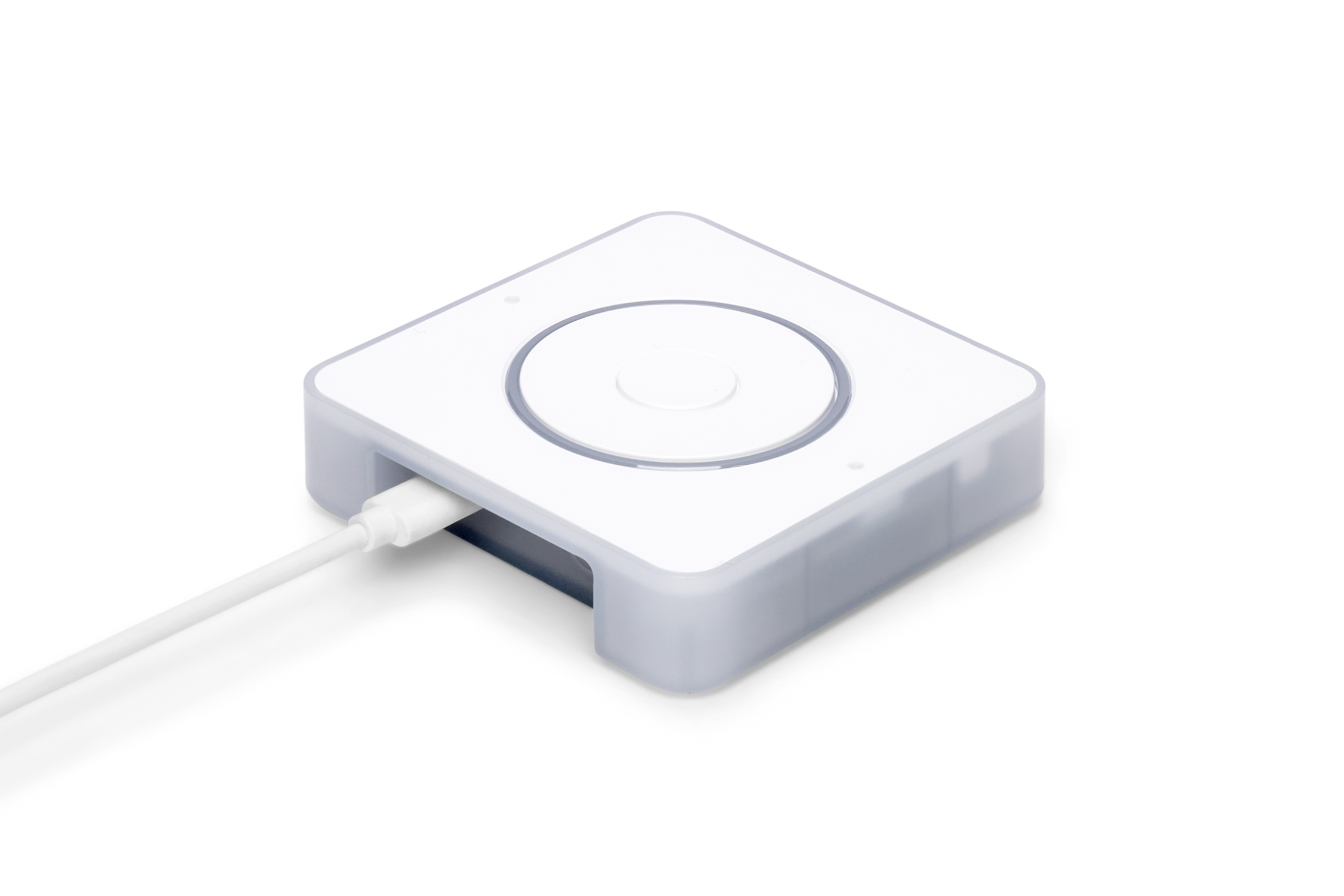

  • The easiest way to start with Assist: Just connect it to USB-C power (cable and power supply not included) and it will connect with Home Assistant via an intuitive installation wizard. No assembly required.
  • The private voice assistant: Pairing Voice Preview Edition with powerful Home Assistant hardware can allow it to run fully locally, or offload its audio processing to the privacy-focused Home Assistant Cloud. It also includes a hardware mute switch that physically cuts power to the microphones.
  • Language support: Assist aims to support more languages than other voice assistants, but this is still a work in progress, and Home Assistant needs your help. Check the supported languages in the Home Assistant’s Assist documentation.
  • Advanced Audio Processing: Dual microphones and the XMOS audio processor cuts through noise to hear your voice clearly.
  • Visual and audio feedback: The multicolored LED ring displays when it's listening, volume levels, and more. Get sensor readings, timers and other feedback via its speaker. Connect an external speaker for media playback via its 3.5mm headphone jack.
  • Physical controls: The rotary dial lets you control volume and LED brightness, while the multifunction button can trigger Assist or be customized in Home Assistant.
  • Blends into the home: Its small, unobtrusive design is injection-molded giving it a premium look, and its tactile controls give it a premium feel.
  • Expandable: Built on ESPHome, sensors can be added via the included Grove port.

Fully open and community-driven: Completely open software, firmware, and hardware lets you make it work the way you want.  All backed by a dedicated community customizing and adding functionality.

Specifications


SoC: ESP32-S3  SoC with 16 MB of FLASH storage and 8 MB octal PSRAM

Audio Processing: XMOS XU316 Featuring: Echo cancellation, Stationary noise removal, Auto gain control

Power/data: USB-C, 5 V DC, 2 A

Radios: 2.4 GHz Wi-Fi, Bluetooth 5.0 Low Energy

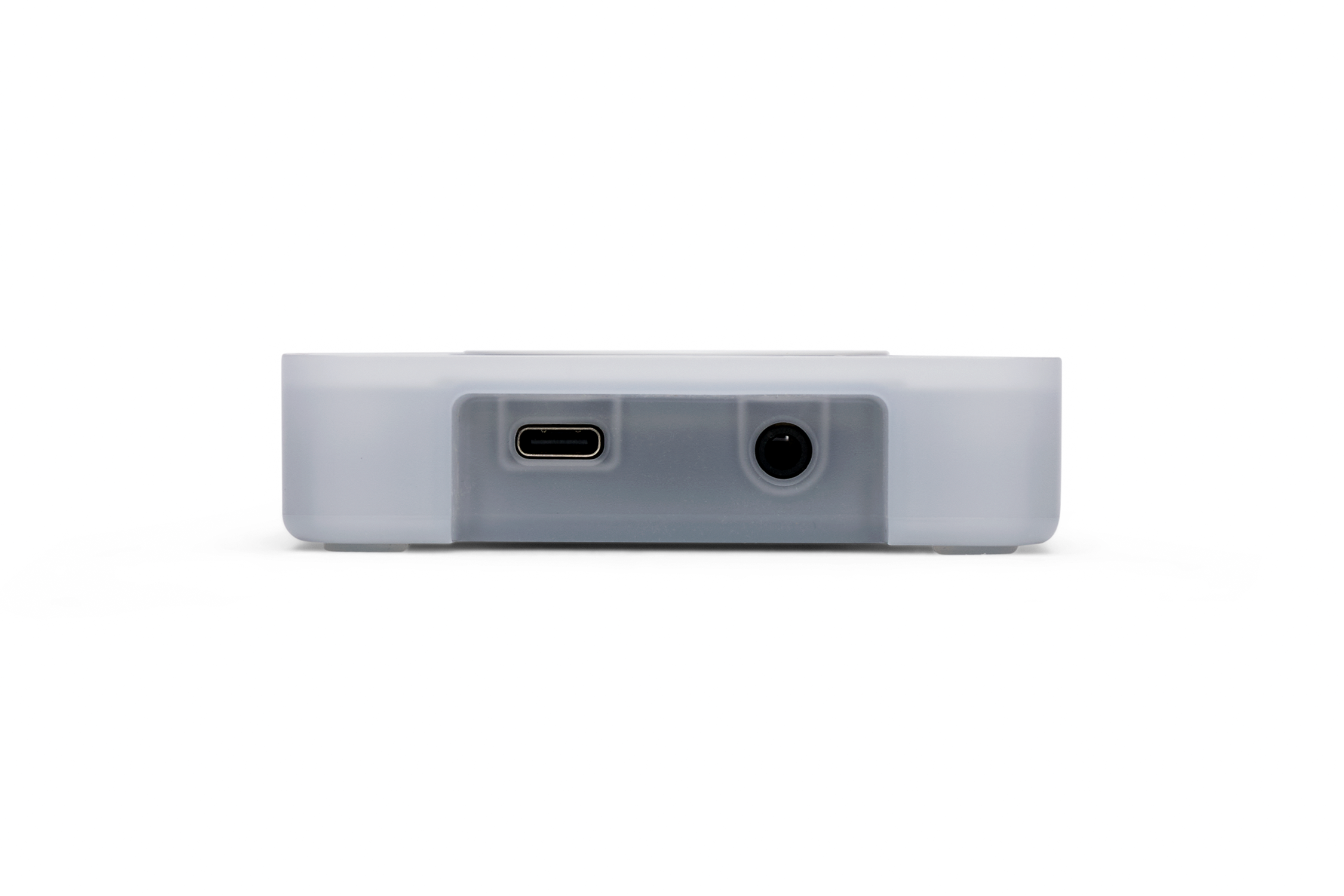

Audio output: 3.5 mm (⅛”) stereo headphone jack

Digital to analog converter (DAC): TI AIC320248 kHz sampling rate

Physical controls: Multipurpose button, Rotary dial for volume and other input. Mute switch that physically cuts power to the microphone

Microphone & speaker: Internal speaker, Internal dual-mic array, Hardware mute switch, Dedicated I2S lines for audio in and out

Expandability: Grove port to connect sensors or other accessories, Easy to open - no clips, only screws to access internals, Exposed pads on PCB for modding

Software: ESPHome preloaded, Fully open-source firmware for both the ESP32 and XMOS chip

Requirements: Home Assistant already configured on another device.

For fully local speech processing, it is recommended to have a Home Assistant system based on an Intel N100 or higher. Weaker hardware will require a Home Assistant Cloud subscription for optimal speech processing performance.

Language support: Check Home Assistant Assist documentation for an up-to-date list.

Environmental conditions
for operation: Indoor use only, O °C to 30 °C (32 °F to 86 °F), Humidity: non-condensing, Keep in dry, not excessively dusty environment as this can cause damage to the unit

Dimensions & weight: 84x84x21 mm, 96 g | with box: 94x94x30 mm, 120g

Material: Enclosure: Injection-molded Polycarbonate plastic

Colors: White and Semi-transparent

Tech Specs

SoC
ESP32-S3 16 MB Flash, 8 MB octal PSRAM
Audio Engine
XMOS XU316
DAC
TI AIC3204, 48 kHz sampling rate
Height
84mm
Width
84mm
Depth
21mm
Weight
96g
Enclosure Material
Injection-molded Polycarbonate plastic
Note that a USB C cable will be required to power this device and is not included.
USB-C
5 V DC, 2 A
Wireless
Wi-Fi 2.4 GHz, Bluetooth 5.0 Low Energy
Home Assistant Voice Preview Edition
Getting Started Guide
Warranty and Safety Information
Indoor use only
O °C to 30 °C | 32 °F to 86 °F

Keep in dry, not excessively dusty environment as this can cause damage to the unit
Humidity
Non-condensing

Manuals and Links

Getting Started
Resources

Frequently Asked Questions

No, the device does not come with a USB-C charger and cable. Sustainability is a core value of the Home Assistant project.

Complementary Products

Customer Reviews

Based on 38 reviews
66%
(25)
21%
(8)
13%
(5)
0%
(0)
0%
(0)
100.0
97.4
N
Nikita P.
Awesome. I liked it so much I bought another one!

Everythingsmart.io provided very fast service with next day delivery, and at the keenest price I could find. The Preview Editions are basic, and do not even have full Bluetooth on board, so need to be connected to my smart speakers with auxiliary cables. This works fine though. Where the Home Assistant Voice Preview Edition blows all competitors others away though is using an AI service as the Conversation Agent, enabling sophisticated and in-depth commands to be run to manage your home, all with a customised style. I get my assistant to speak in rhyming banter and sprinkle French and German expressions into its replies. This often has me laughing out loud, always has me enjoying it and it's like having a virtual friend to brighten your day. A voice assistant as quirky and nuanced as you are. What's not to love about it?

T
Thibault B.
Great!

Still some improvements needed for sure but amazing work by the Nabu Casa team for what they've achieved so far. It's been a week without Amazon devices in the house and it feels great.

It actually understands my partner and I fairly well with the Alexa wake word when taking control of the device in ESPHome.

It also opens new automation possibilities as we're not locked in a system that with limited features that only cares about selling you stuff.

Also great service from EST, super quick dispatch and next day delivery. Thank you! 🙏

S
Stephen C.
Fun to play around with

This is the start of the future :)

S
S.C.

Great device. Junking all my Alexa’s and moving over to these

B
Ben A.
Brilliant

Remarkable - it can even pick up commands from an adjacent room sometimes! I really like the use of the LED ring for timers and visual response cues. And, of course, dealing with EST is always delightful. I've ordered lots of things from EST and have always had speedy deliveries and great service.

Load More
