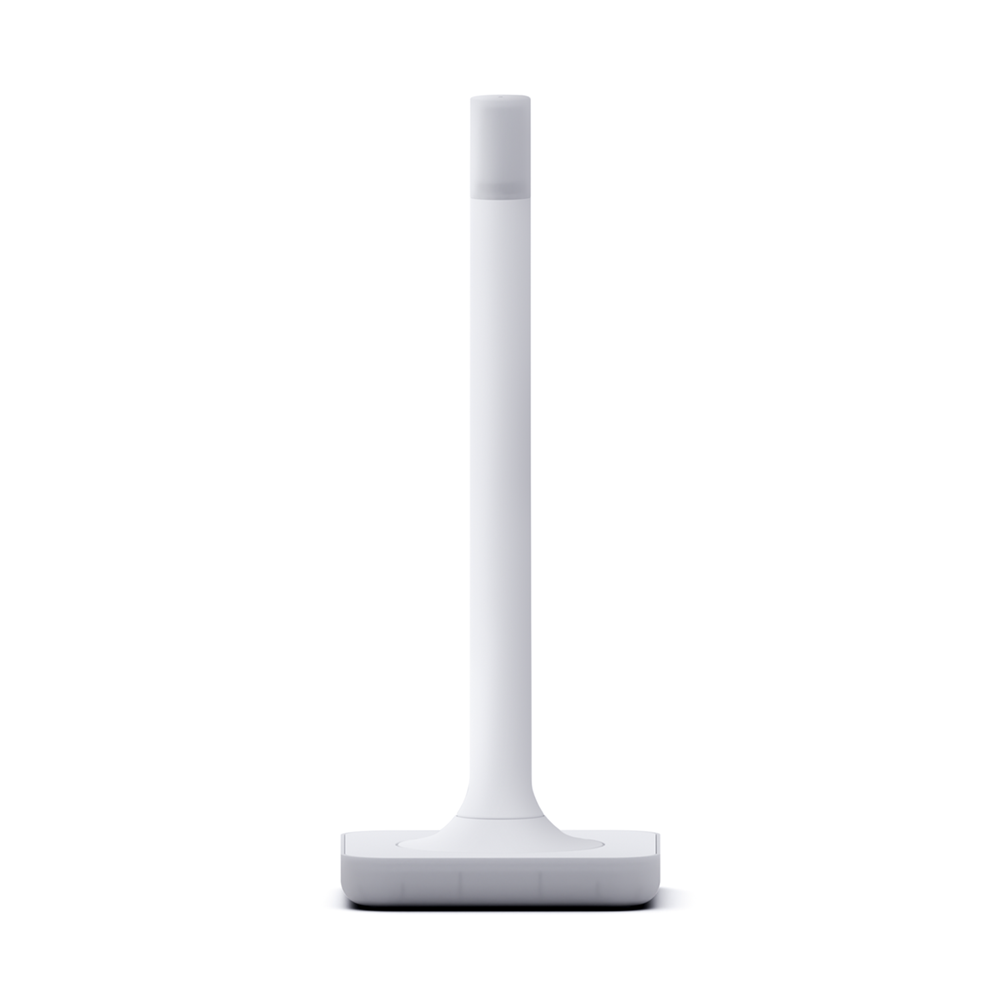

Home Assistant Connect ZWA-2

The ultimate way to connect Z-Wave devices to Home Assistant.

The most performant Z-Wave adapter available, it is the ultimate way to connect any Z-Wave device to Home Assistant. The antenna and base are precisely tuned to Z-Wave’s ideal wavelength, working in harmony to provide a reliable connection and maximize range. With support for Z-Wave Long Range*, it provides a more dependable, responsive connection to far-away devices and improved battery life. Designed by the team driving forward Home Assistant and Z-Wave JS, it offers plug-and-play setup and effortless migrations.

*Currently, Z-Wave Long Range only supports the North American and European regions, with limited device availability in Europe.

Home Assistant Connect ZWA-2
Integrates with Home Assistant - light Integrates with Home Assistant - dark Z-Wave badge

Latest Z-Wave Chipset

Certified and includes the latest 800-series chipset, it supports all Z-Wave devices.

Plug and Play

Z-Wave setup has never been easier, thanks to our intuitive start-up wizard and one-click firmware updates.

All the benefits of Z-Wave

While Zigbee, WiFi, and Bluetooth all share the same airspace, Z-Wave has its own frequency that better cuts through thick walls and with less interference in busy areas.

Designed for the home

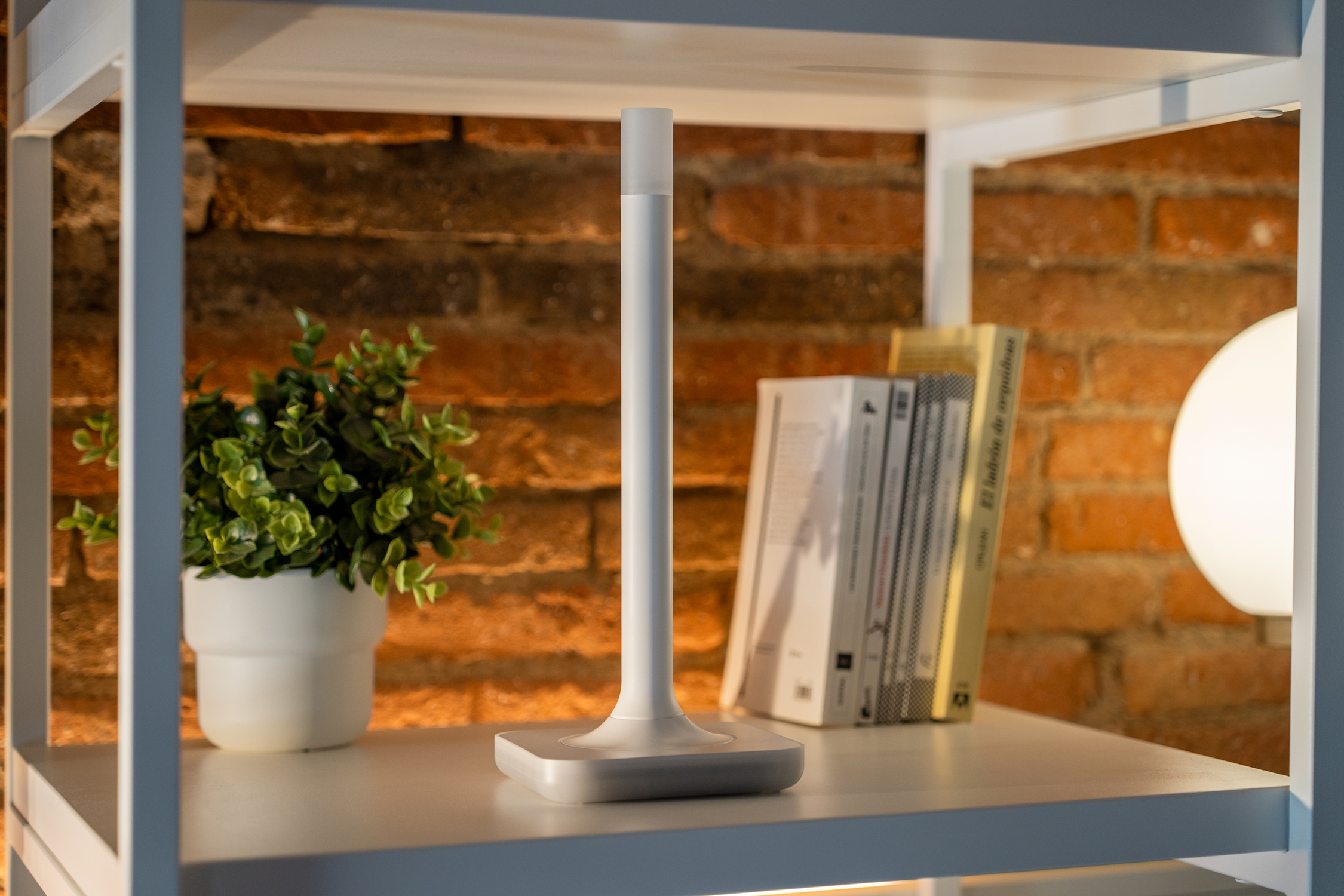

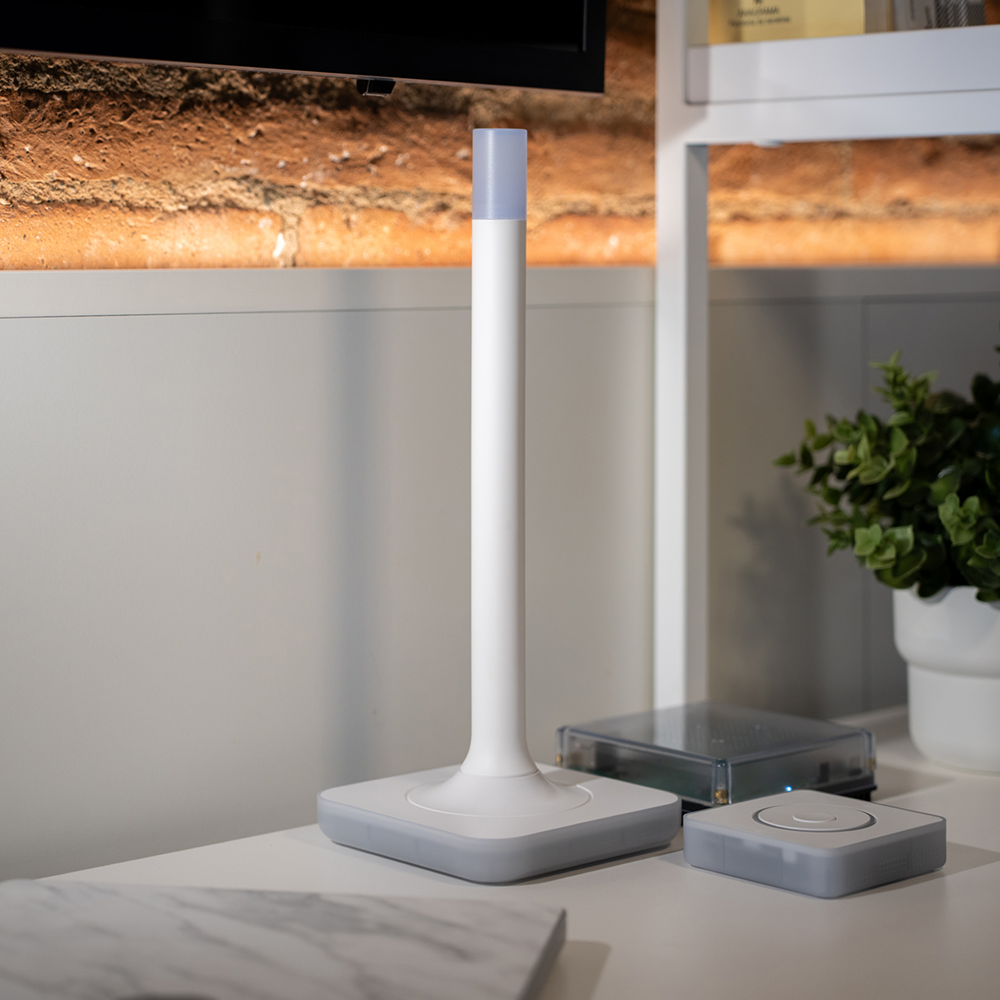

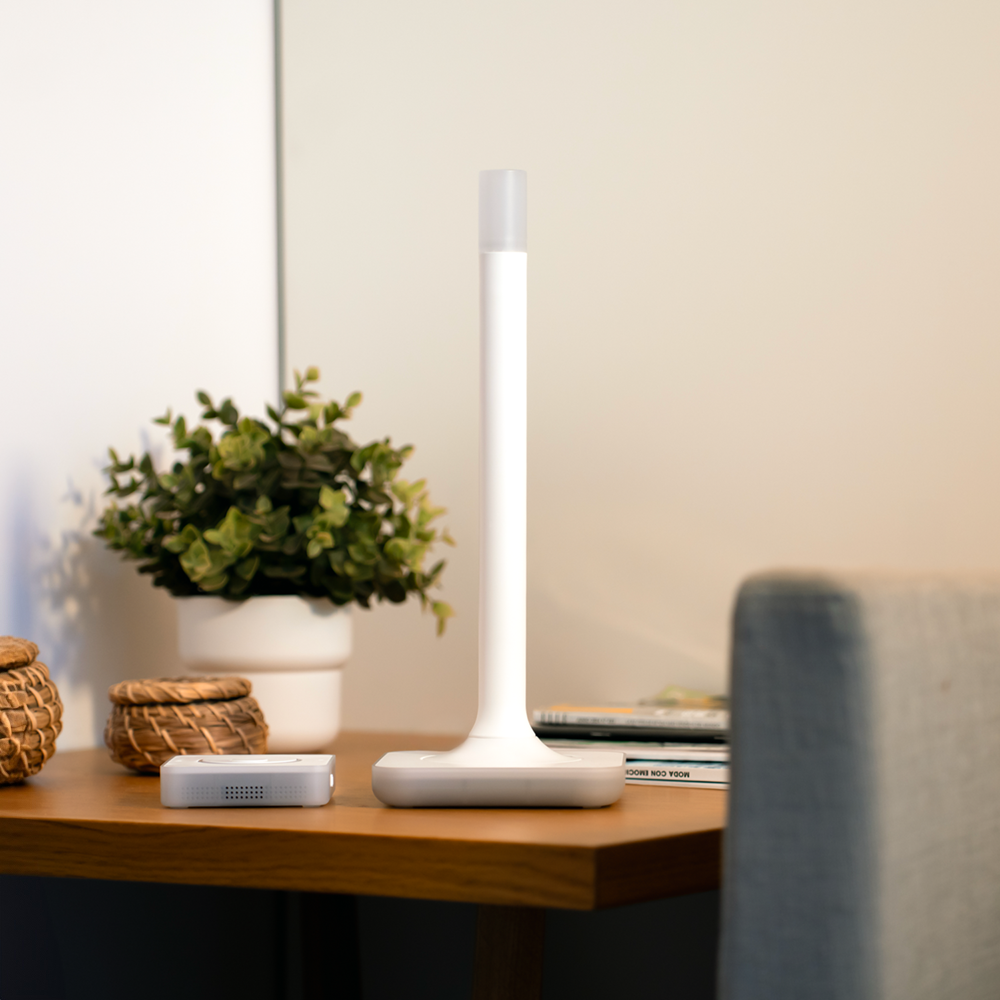

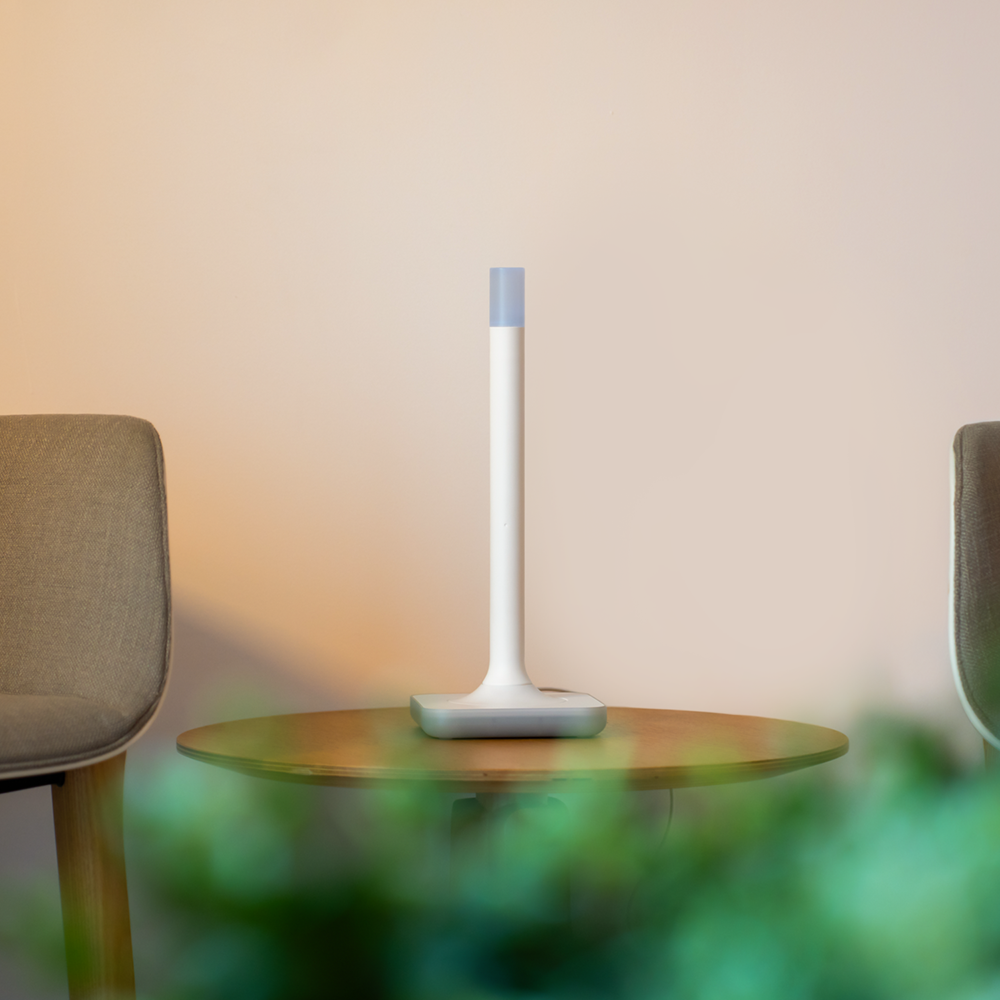

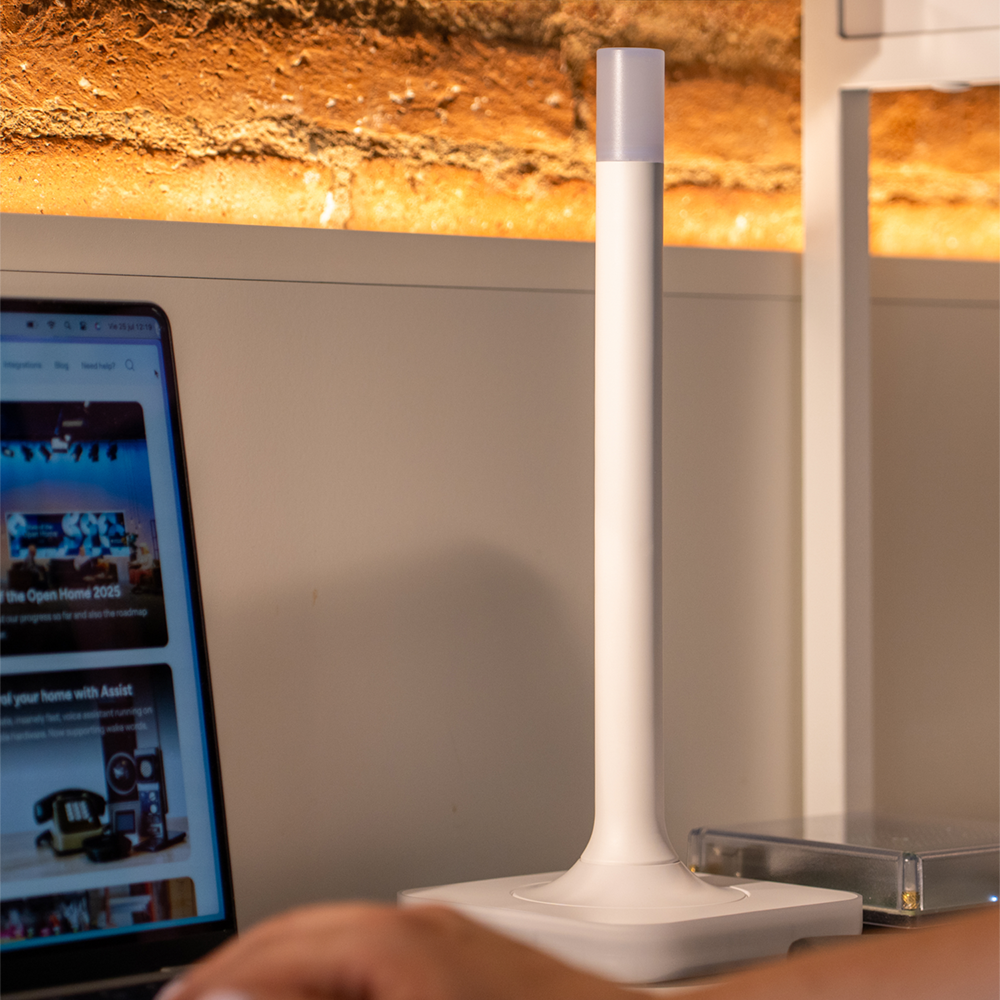

From its injection molded case, to sleek lines, it's designed to blend into home decor. It not only resembles a candle, but it also lights up like one.

Description

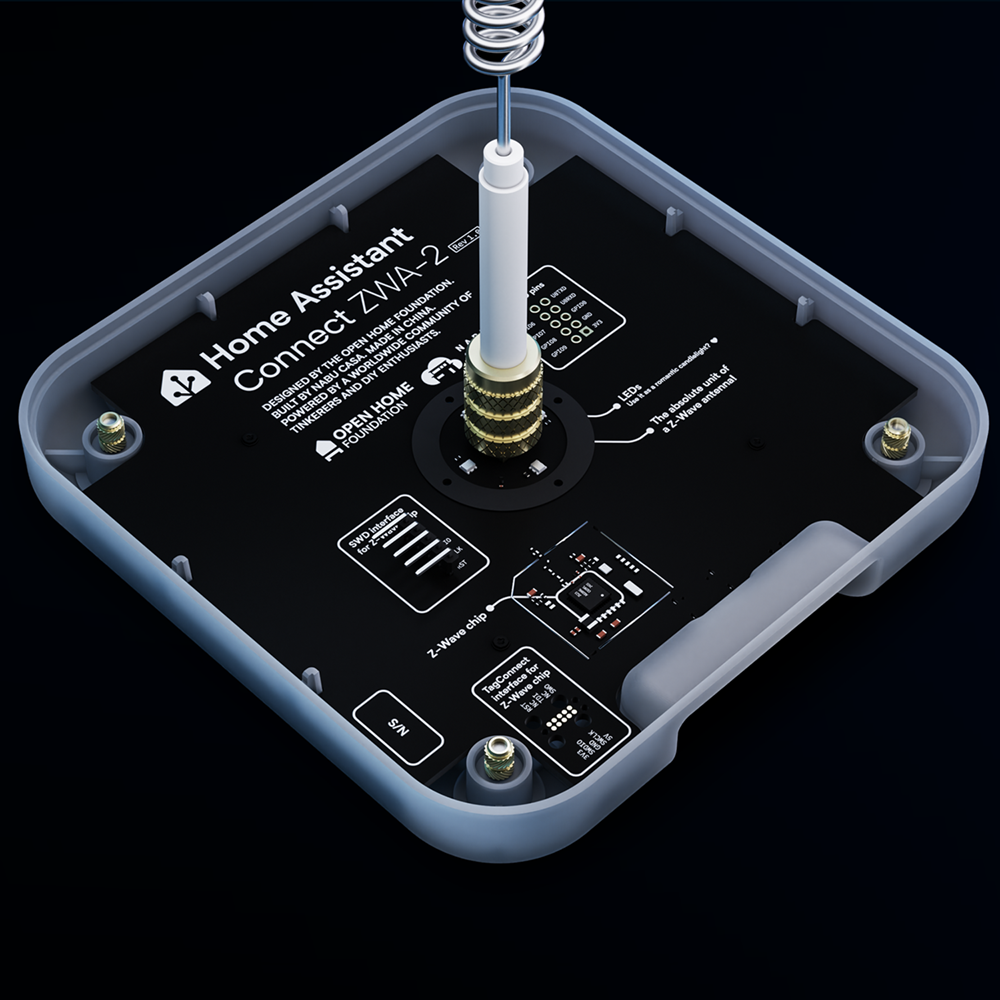

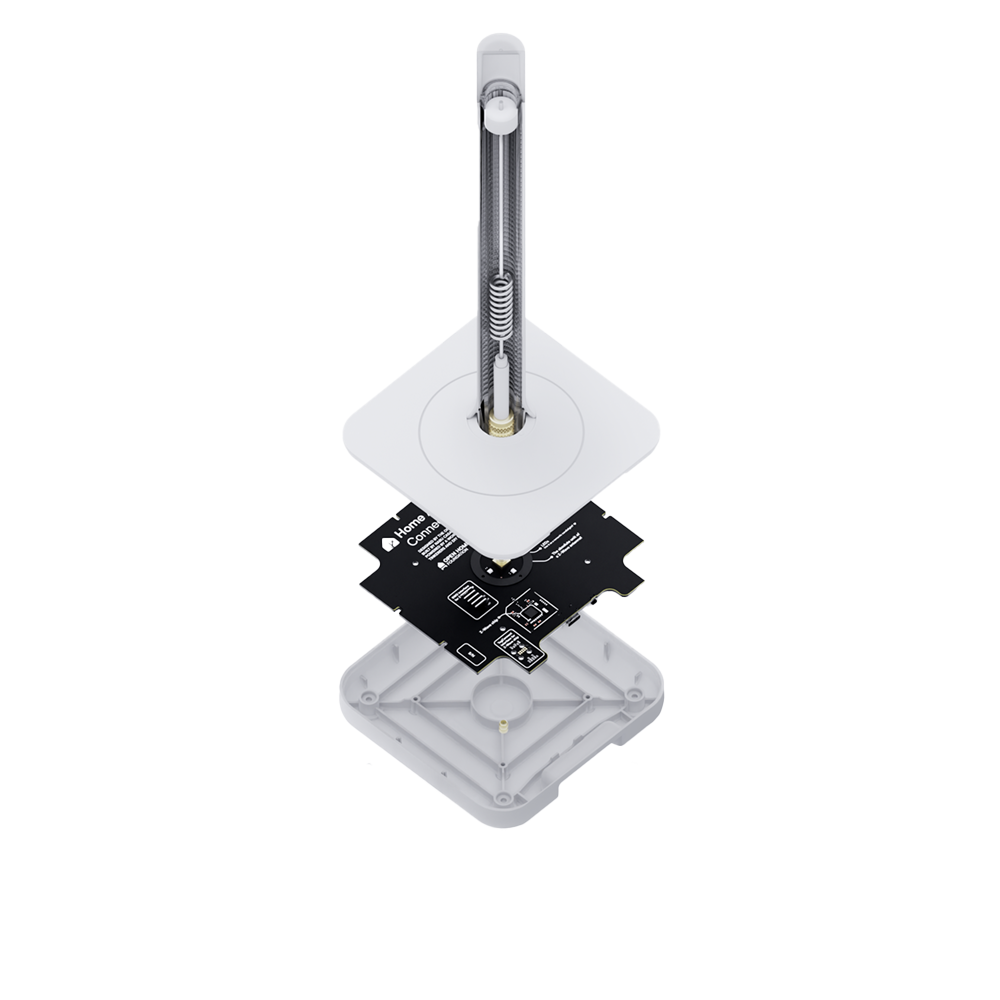

📐 PRECISELY ENGINEERED – The antenna and base are precisely tuned to Z-Wave’s ideal wavelength, working in harmony to provide a reliable connection and maximize range.

✅ LATEST Z-WAVE CHIPSET – Certified and includes the latest 800-series chipset, it supports all Z-Wave devices.

🌊 ALL THE BENEFITS OF Z-WAVE – While Zigbee, WiFi, and Bluetooth all share the same airspace, Z-Wave has its own frequency that better cuts through thick walls and with less interference in busy areas.

📶 LONG RANGE COMPATIBLE – This newest iteration of the standard delivers more reliable, responsive connections to very far-away devices, and improved battery life.*

🏠 BUILT FOR HOME ASSISTANT – Designed by the team driving forward Home Assistant and Z-Wave JS.

🔄 EFFORTLESS MIGRATION – Moving from most other adapters to ZWA-2 can be done in a couple of clicks.

✨ PLUG AND PLAY – Z-Wave setup has never been easier, thanks to our intuitive start-up wizard and one-click firmware updates.

📬 MORE RANGE MORE OPTIONS – Set up a mailbox sensor in your apartment building or smartify a motorized gate at the end of your driveway.

🧬 2ND GENERATION PLATFORM – Built on our second-generation Home Assistant Connect platform (hence the 2), it is designed to be performant and open.

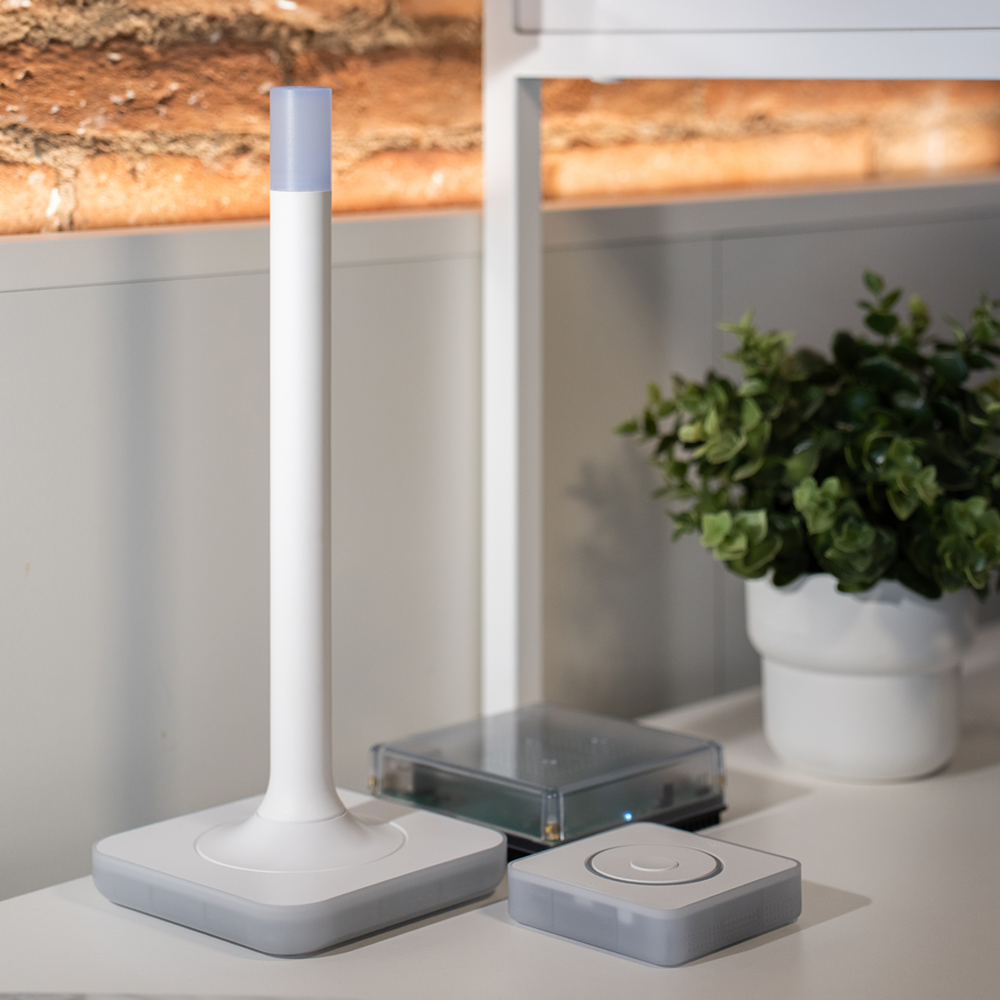

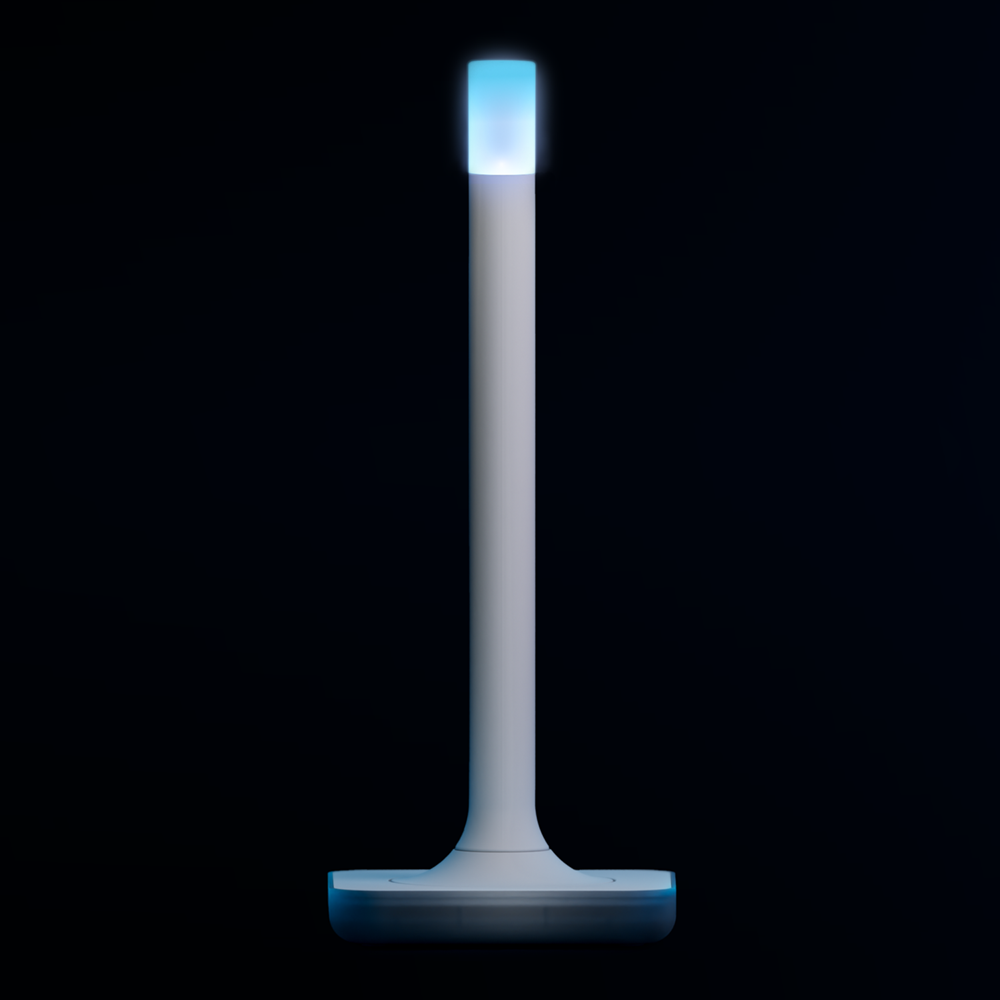

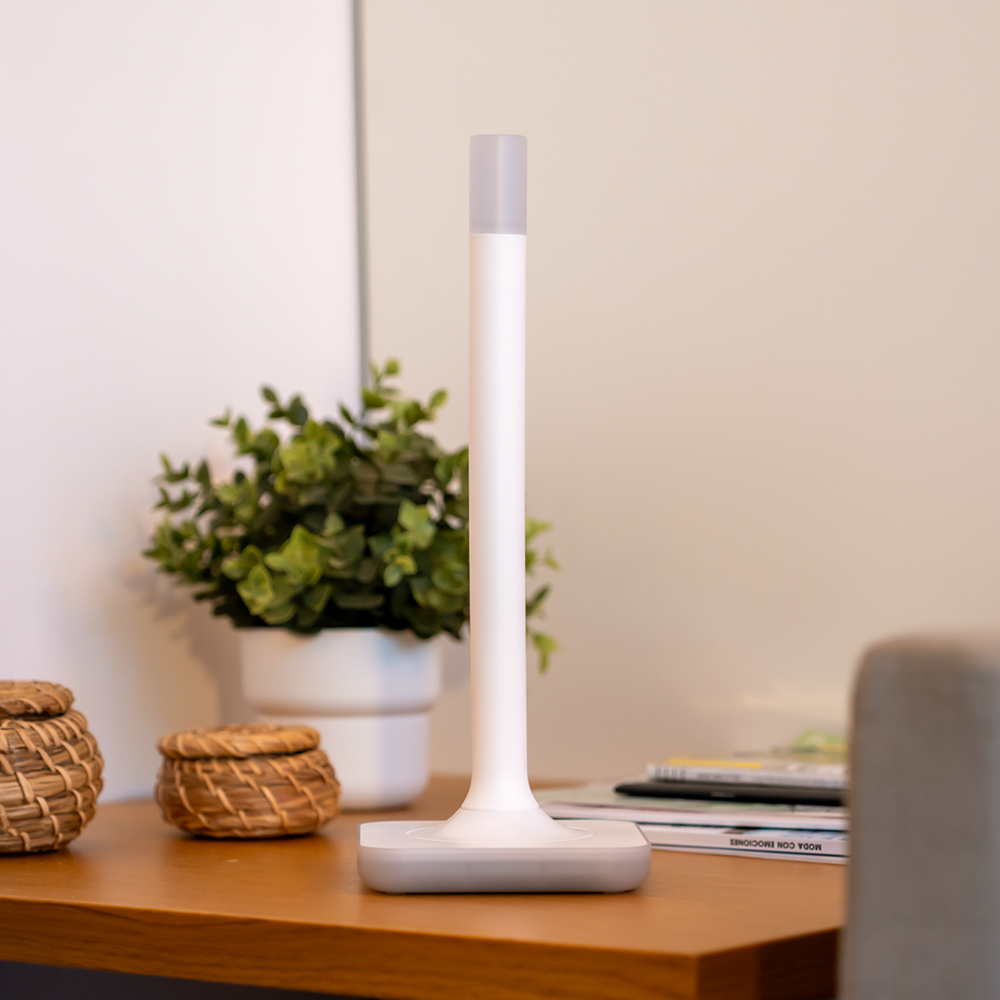

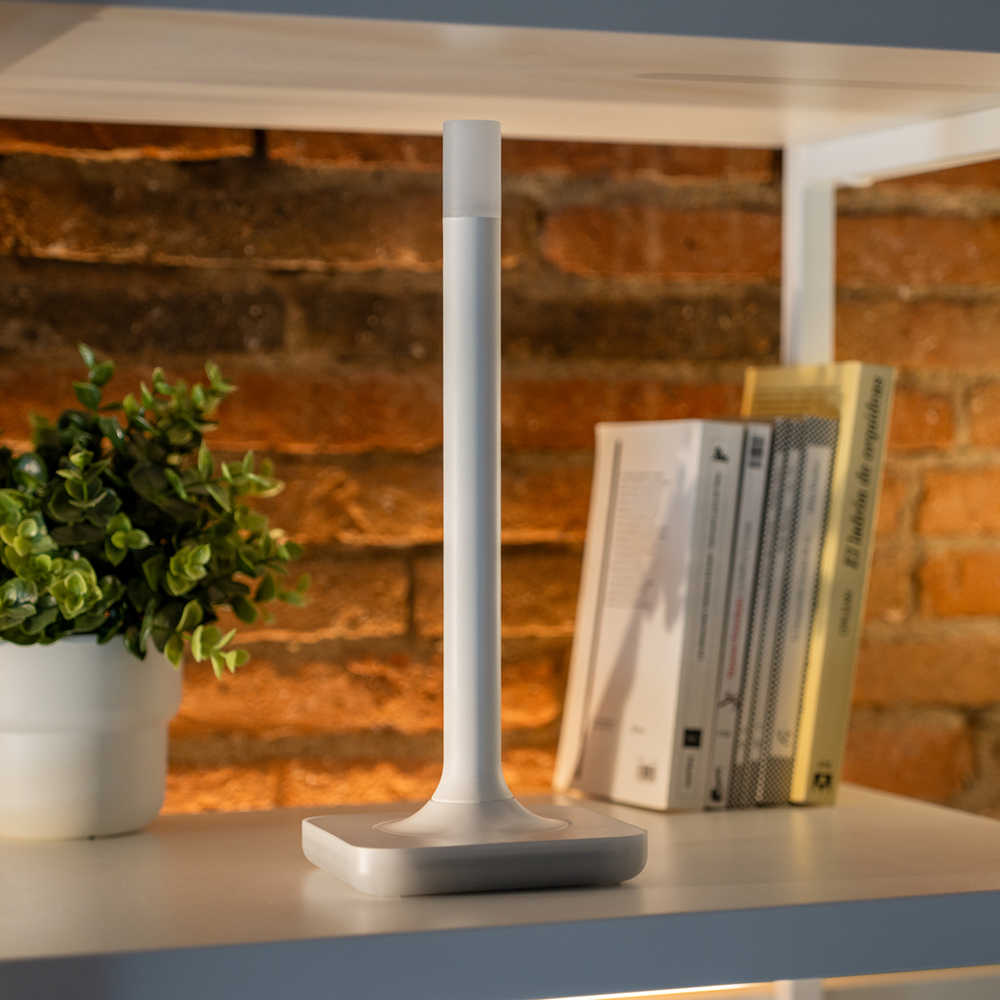

🕯️ DESIGNED FOR THE HOME – From its injection molded case, to sleek lines, it's designed to blend into home decor. It not only resembles a candle, but it also lights up like one.


*At launch, Z-Wave Long Range had limited device support outside North America, but this will expand soon.

Tech Specs

SoC
Silicon Labs ZG23 | ESP32-S3 (USB-serial bridge)
Supported Protocols
Z-Wave, Z-Wave Long Range
Z-Wave Series
800
The frequency used by end devices depends on the region, e.g:
US: 908.42/916 MHz (mesh), 912/920 MHz (LR)
EU: 868.4/869.85 MHz (mesh), 864.0/866.0 MHz (LR)
AU: 919.8/921.4 MHz
Frequency range
860-930 MHz
Peak gain
3.38 dBi
Radiation pattern
Omnidirectional
Indoor use only
Keep in dry, not excessively dusty environment as this can cause damage to the unit.
Do not leave the unit in direct sunlight or near any heat source, as this can cause overheating.
Temperature
O °C to 65 °C | 32 °F to 149 °F
Humidity
Non-condensing
Height
125mm
Width
125mm
Depth
315mm
Weight
350g
Enclosure Material
Polycarbonate plastic
Antenna, Base

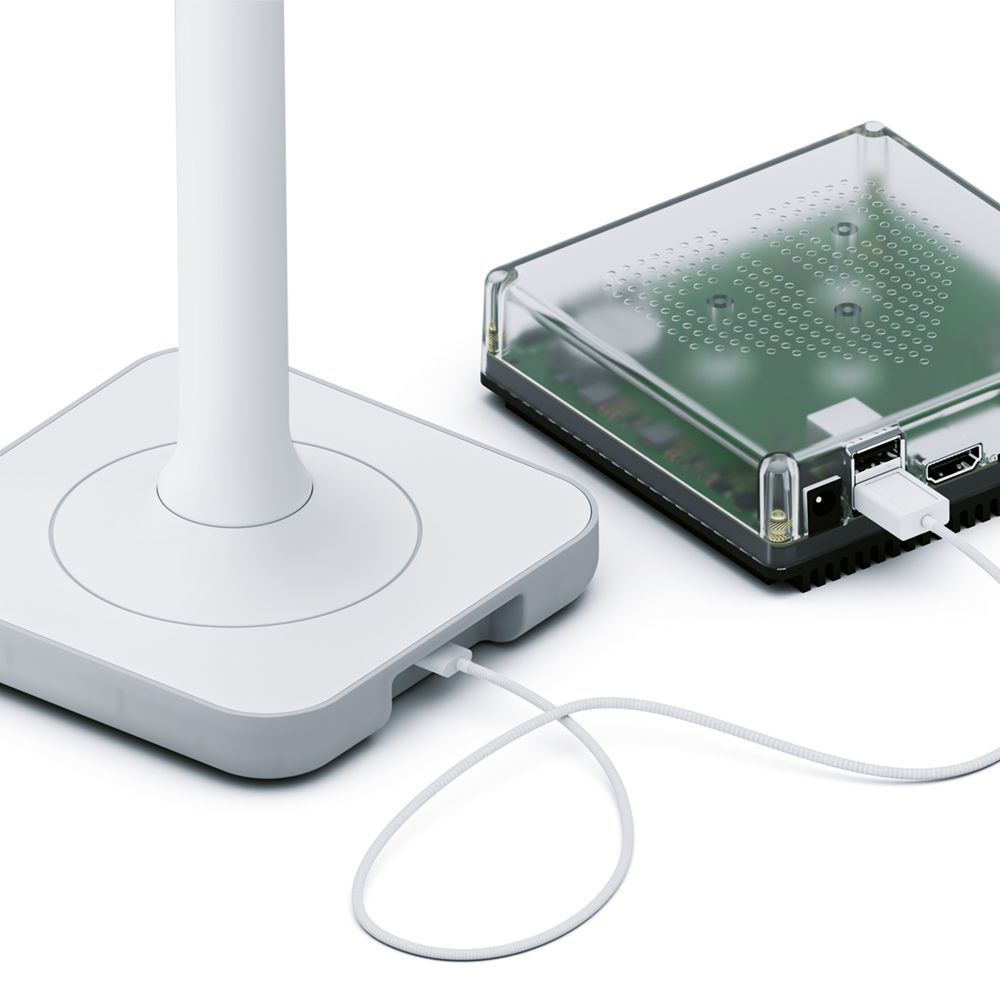

USB-Cable (USB 2.0/3.0)
Quickstart guide
