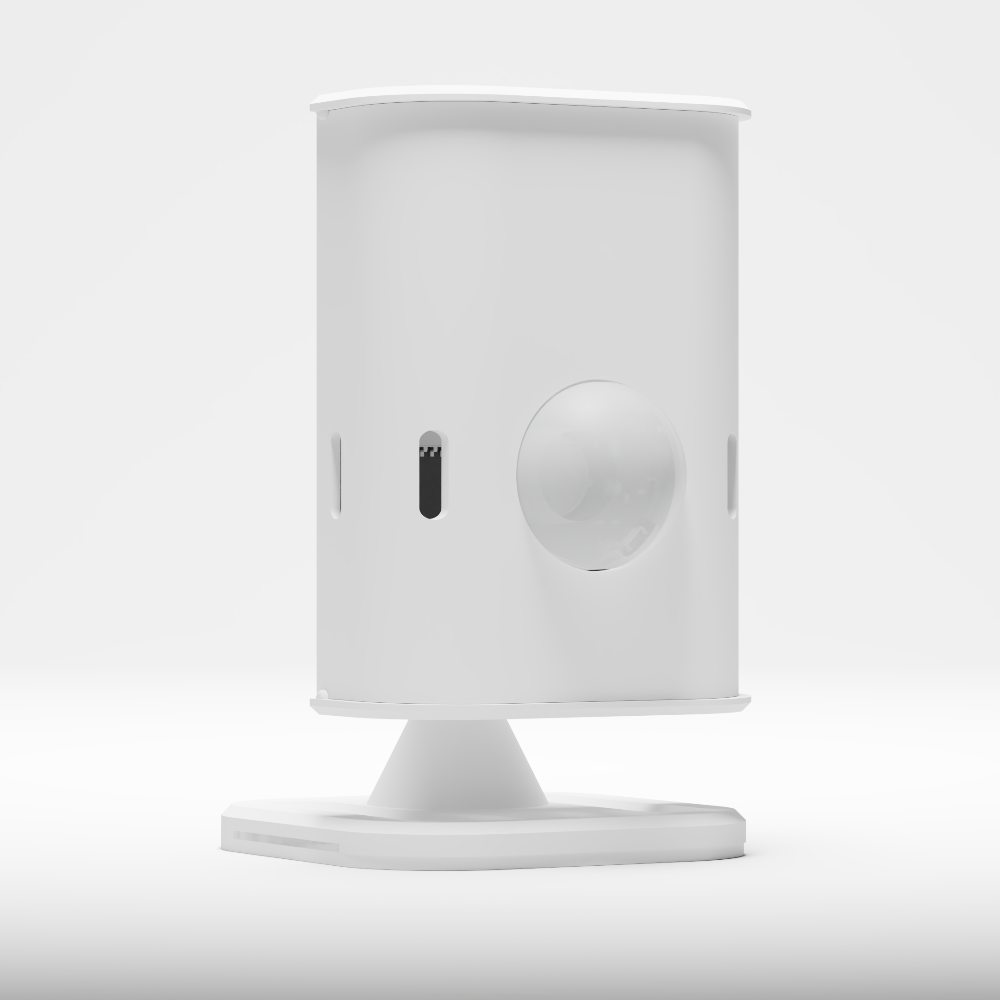

Introducing Everything Presence One, the ultimate smart home sensor to easily add deeper intelligence to your home.

This ultimate smart home sensor supports a 24GHz mmWave Sensor for precise motion tracking as well as a powerful PIR for lightning fast responses. With a Temperature and Humidity sensor for monitoring climate status, Ambient Lighting sensor for smart control of lights, Bluetooth Tracking for wearables and an ESP32 for connectivity.

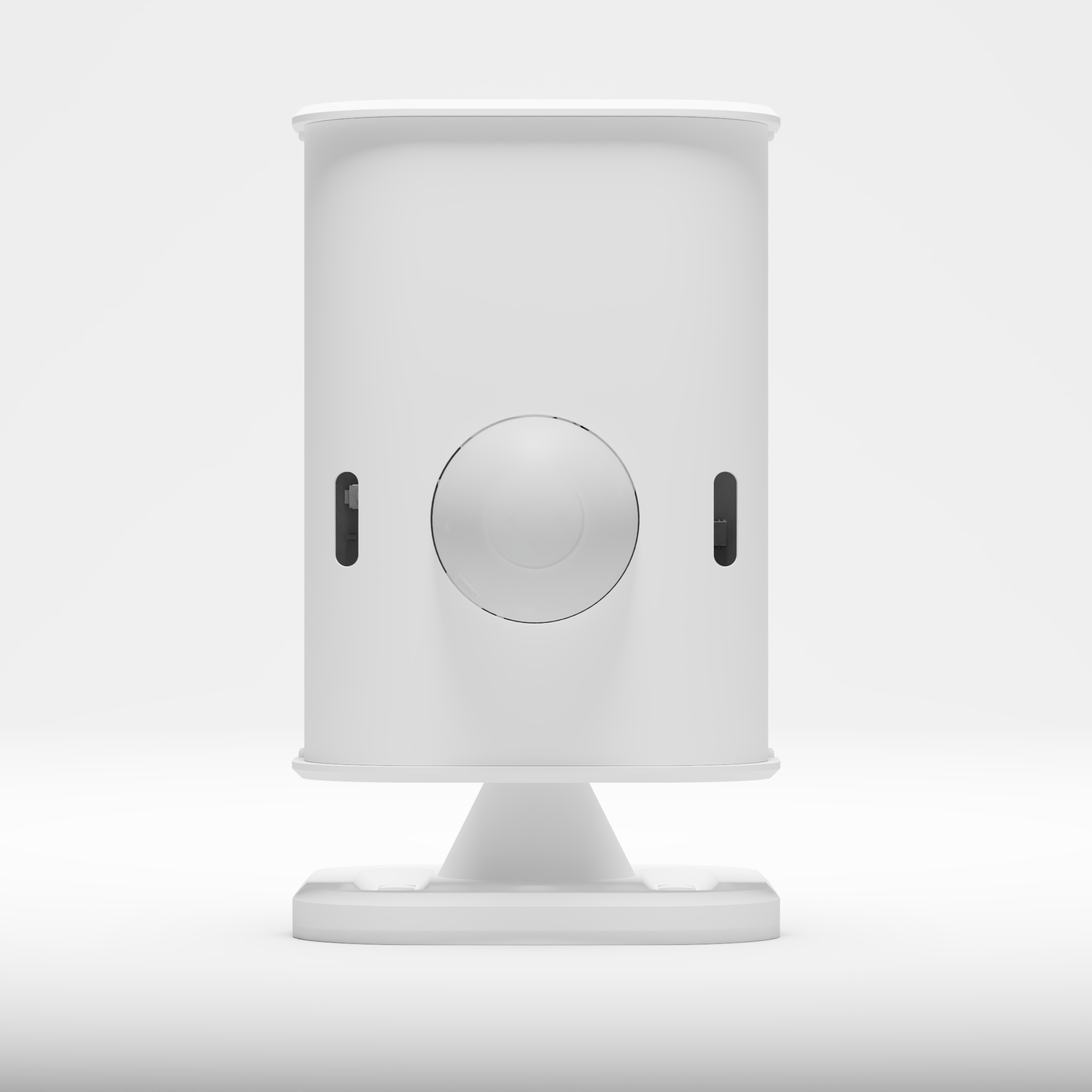

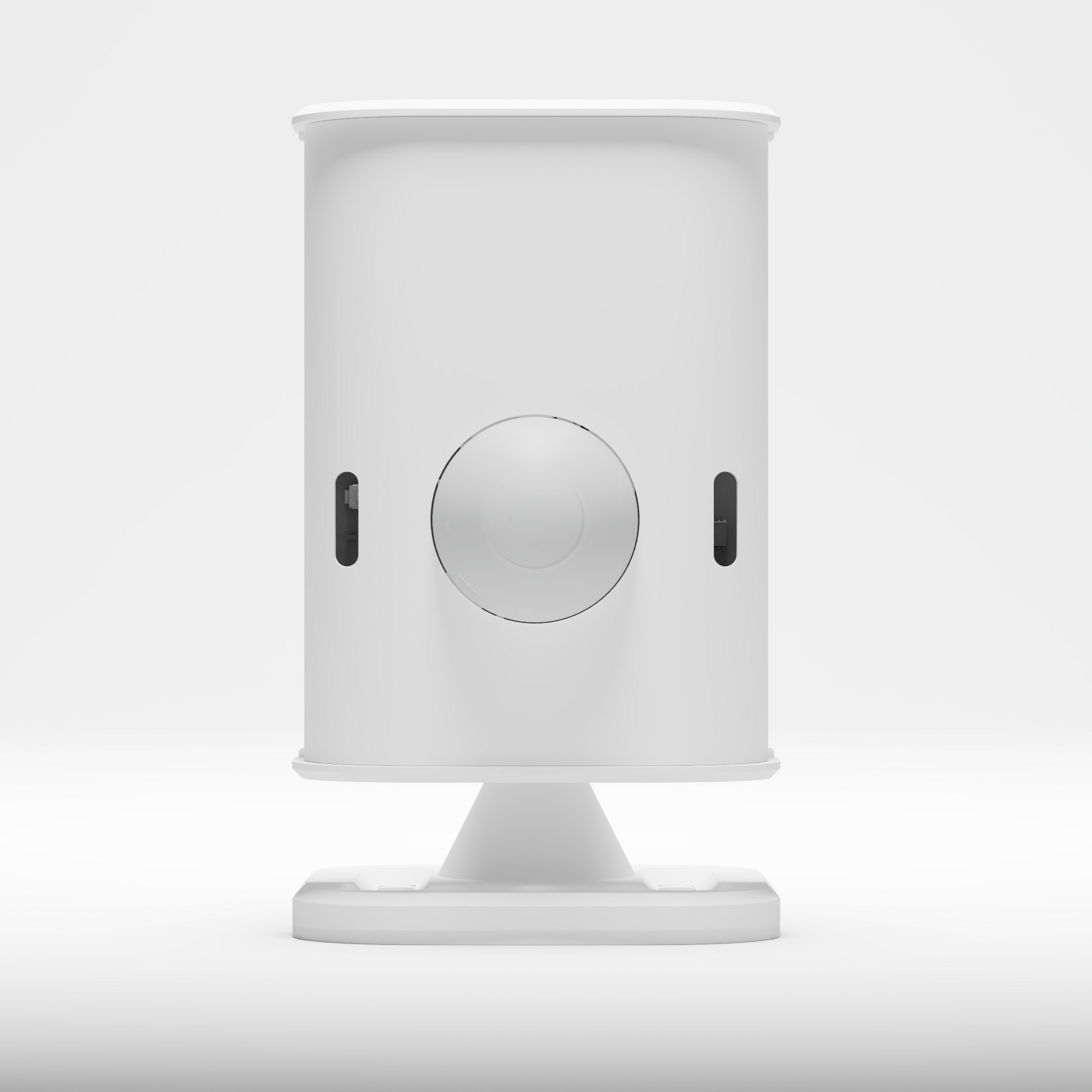

Everything Presence One
  • Overview
  • Specifications
Made for ESPHome Bluetooth badge - light Bluetooth badge - dark WiFi

More Than Motion—This is True Presence Detection

Powered by a 24GHz mmWave sensor and a Panasonic industrial-grade PIR, the Everything Presence One can detect both micro and macro movements—whether you’re walking into a room or sitting still at your desk. With up to 25 metres of mmWave range and 12 metres of PIR coverage, it's ready for every space in your home.

Designed for Home Assistant. Ready for SmartThings

Everything Presence One comes preloaded with ESPHome, making adoption into Home Assistant nearly instant. It can also work as a Bluetooth Proxy to extend Home Assistant’s Bluetooth range and now supports Samsung SmartThings via a beta driver—giving you total control in the ecosystem you already use.

Engineered to Adapt, Expand, and Upgrade

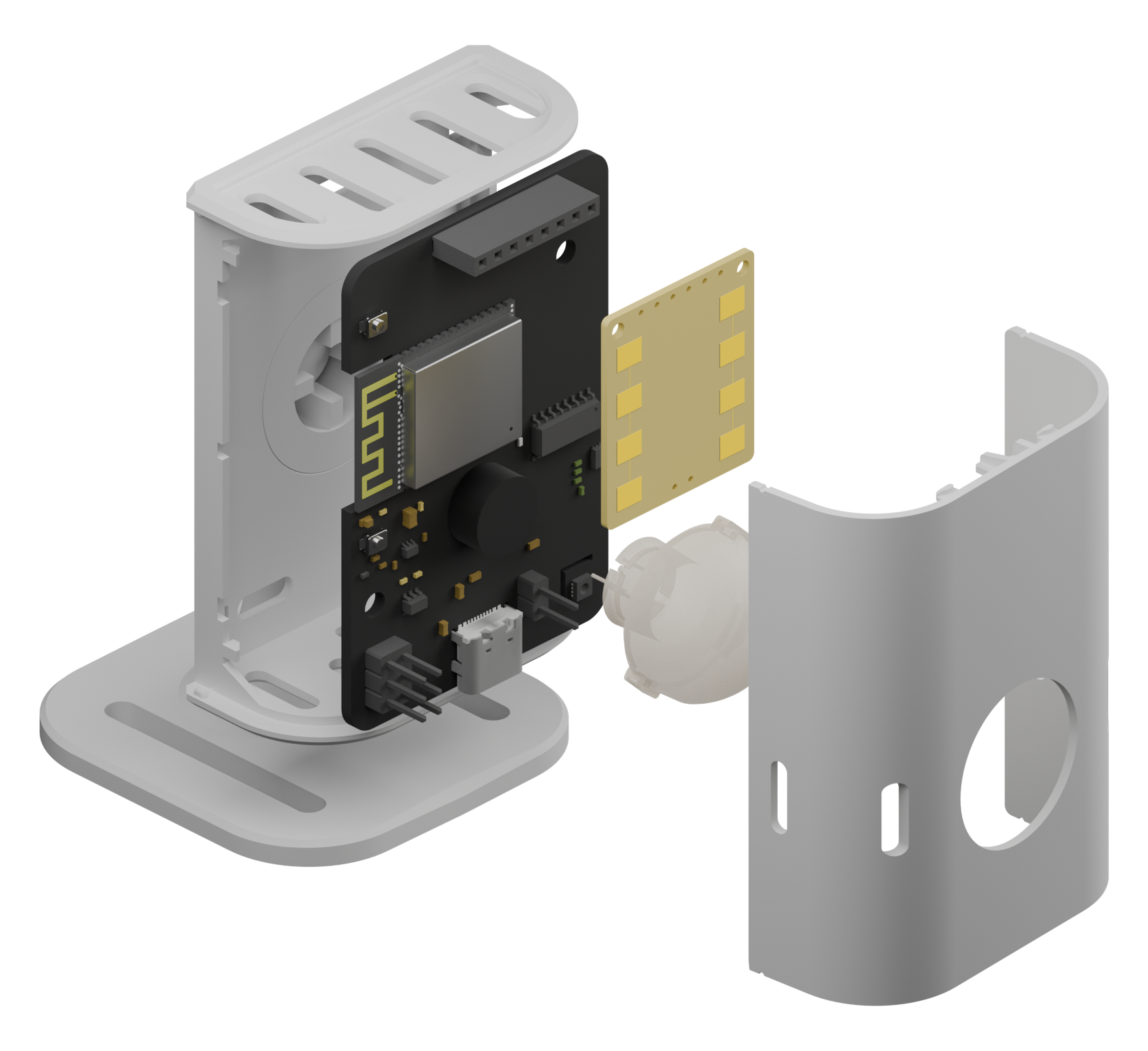

Designed with makers in mind, the board includes 4 GPIO pins, a USB-C port, power header pins, and a removable mmWave + PIR module system. Flash it with your own software or expand it with additional sensors. Built by a father-and-son duo, it’s the presence sensor made for tinkerers.

Smarter Spaces Start Here

Whether you're automating lights, adjusting your thermostat, or triggering scenes, Everything Presence One gives you the data to do it right. Combine presence detection with light, temp, and Bluetooth tracking to build complex, personalized automations—all without a single camera.

Description

The Everything Presence One Board:

The Everything Presence One board was designed by Lewis and his Dad, David, from scratch to be the sensor Lewis had always wanted in his own smart home (well, within reason!). It combines the reliability and accuracy of mmWave, along with the speed and distance of a PIR motion sensor for the ultimate presence sensor, along with temperature, humidity, ambient light and Bluetooth tracking.

The board was designed for use with the DFRobot 24GHz mmWave module because of it's relatively low price and excellent accuracy. It has a horizontal Field of View (FoV) of 100° and vertical FoV of 40° with up to a huge 25m of detection. Distance, sensitivity and latency is user configurable through Home Assistant.

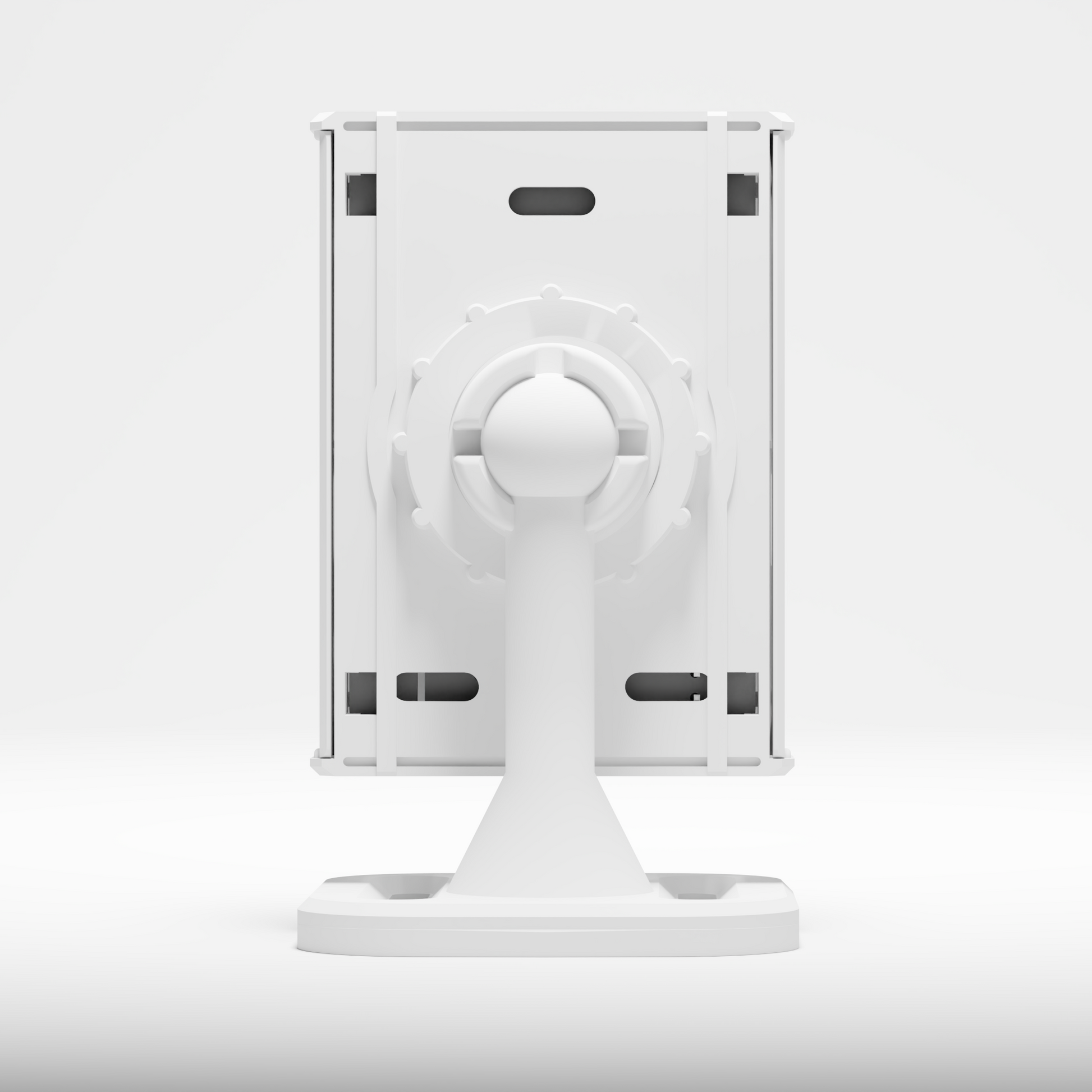

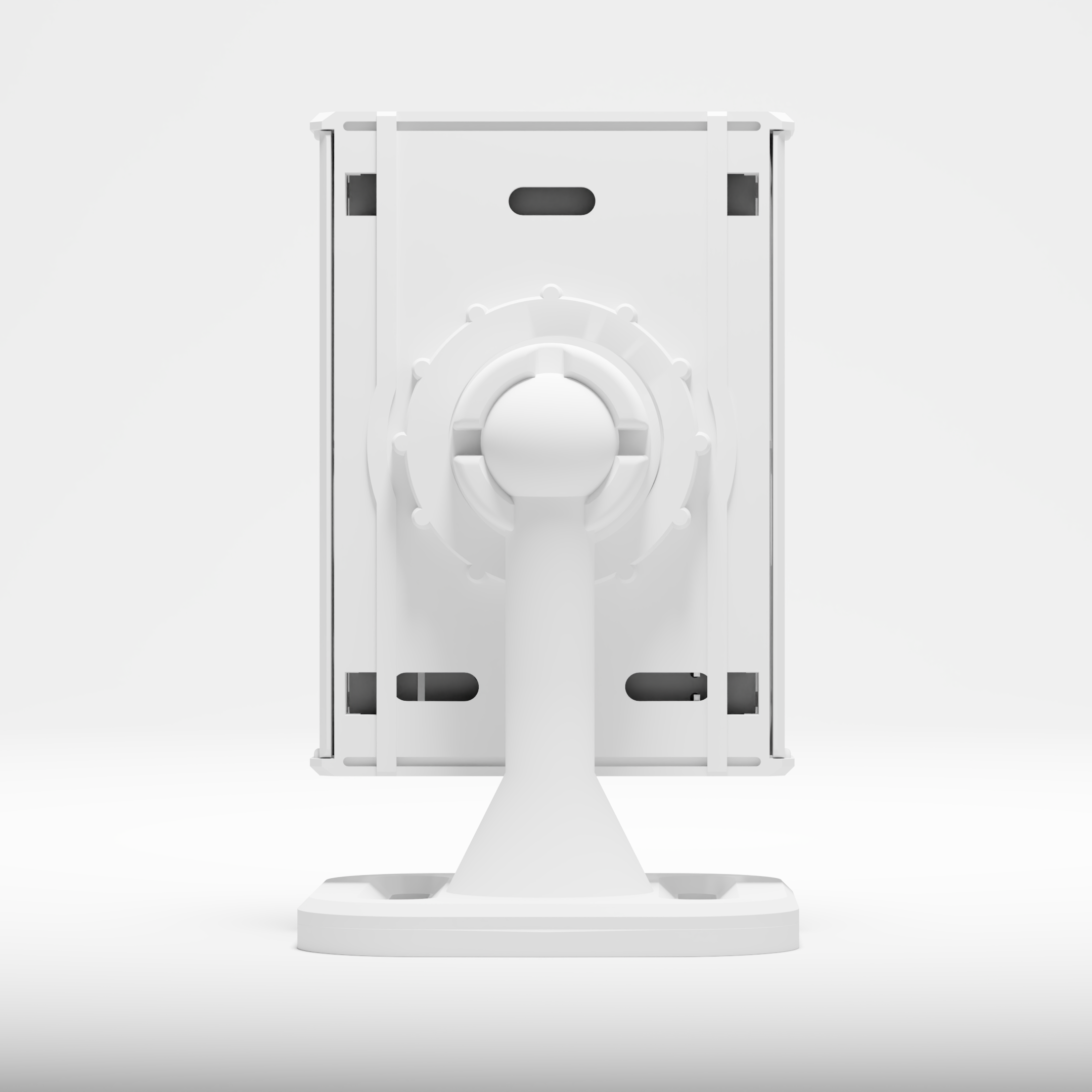

The Panasonic Industrial PIR was selected for it's super reliability, excellent 12m detection distance and high sensitivity. Both mmWave and PIR modules are user removable and replaceable. The mmWave module can be inserted in either the horizontal or vertical position allowing you to select the best angle for your room and environment and the official case allows for flexible mounting and position.

The ESP32 also provides Bluetooth tracking capabilities, along with the brand new Bluetooth Proxy feature in Home Assistant and ESPHome - this allows for extending Home Assistant's Bluetooth range by using remote ESP32's around your house - a function that is a match made in heaven for this board!

Temperature and Humidity is provided by the on-board SHTC3. You can configure how often temperature and humidity data is collected, from as little as every 1 second (though we probably wouldn't recommend that frequently!).

Please note, due to the nature of the temperature sensor being on the same PCB as other heat generating components, readings can be influenced by those components. We have done our best to mitigate this by completely isolating the SHTC3, along with shielding it with a thermal cut-out. This mitigates most of the temperature increase we were seeing during the build but does read roughly 2°c higher than other sensors we tested against (when in the case). To fix this, we add a 2°c offset in the code by default meaning your temperature sensor will read correctly. This offset is user configurable.

We do not see this as an issue, however if you do require a more "accurate" sensor, you may want to consider using the additional GPIO to add an additional temperature sensor. This could also just be a difference in temperature sensors also, but we want to be 100% transparent about this.

The on-board ambient light sensor is provided by the BH1750, which has excellent ESPHome and Arduino IDE support and provides very reliable readings. Ambient light readings can also be collected as frequently as you would like, again from as little as every 1 second.

We have added 4 additional GPIO pins to the board for easy expansion with your own sensors and devices! GPIO18, GPIO19, GPIO21 and GPIO22 are available through on-board headers, along with an additional 5v and ground header.

Power is supplied through either the USB-C port with a 5v, 0.5a wall charger OR we also include a positive and negative terminal on the PCB in case you want to power the device with an alternative power supply. Please note that the device should only be powered by one power source at a time and has a user selectable jumper to protect against this.

The board also has two M3 mounting holes for use with your own mounts.

The Software

Currently, our focus is on delivering the best experience possible out of the box with Home Assistant.

With that in mind, the Everything Presence One will ship with ESPHome pre-installed for simple and direct integration with Home Assistant - connecting this is incredibly easy and takes a matter of minutes. Software will also be available through GitHub to view or modify to suit to your needs.

The USB-C port and on-board USB-to-Serial converter also allows for flashing your own software from Arduino IDE, Tasmota, ESPresence or other similar community projects.

More Information

If you would like to see a DIY version of this sensor in action, check out this video:

https://youtu.be/Viqvx7hMMJs

Tech Specs

SoC
ESP32
mmWave
SEN0609, 24GHz, 25m range, 100° × 40° detection angle
PIR
Panasonic EKMC1603111/3, 12m range
Temperature & Humidity
On-board
Light Sensor
On-board
USB-C
5V 500mA
Header Input
5V
Boot
~240mA
Idle
160mA
Wireless
Wi-Fi 2.4 GHz, Bluetooth 5.0 Low Energy
Height
65mm
Width
49mm
Depth
50mm
Weight
45.3g
Everything Presence One
‎
USB-C Cable (2 m)
‎
24GHz mmWave SEN0609 Module
‎
Panasonic Industrial PIR EKMC1603111/3
‎
Documentation
‎

Manuals and Links

Getting Started
ESP Home Device
